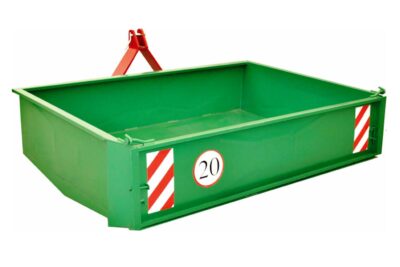

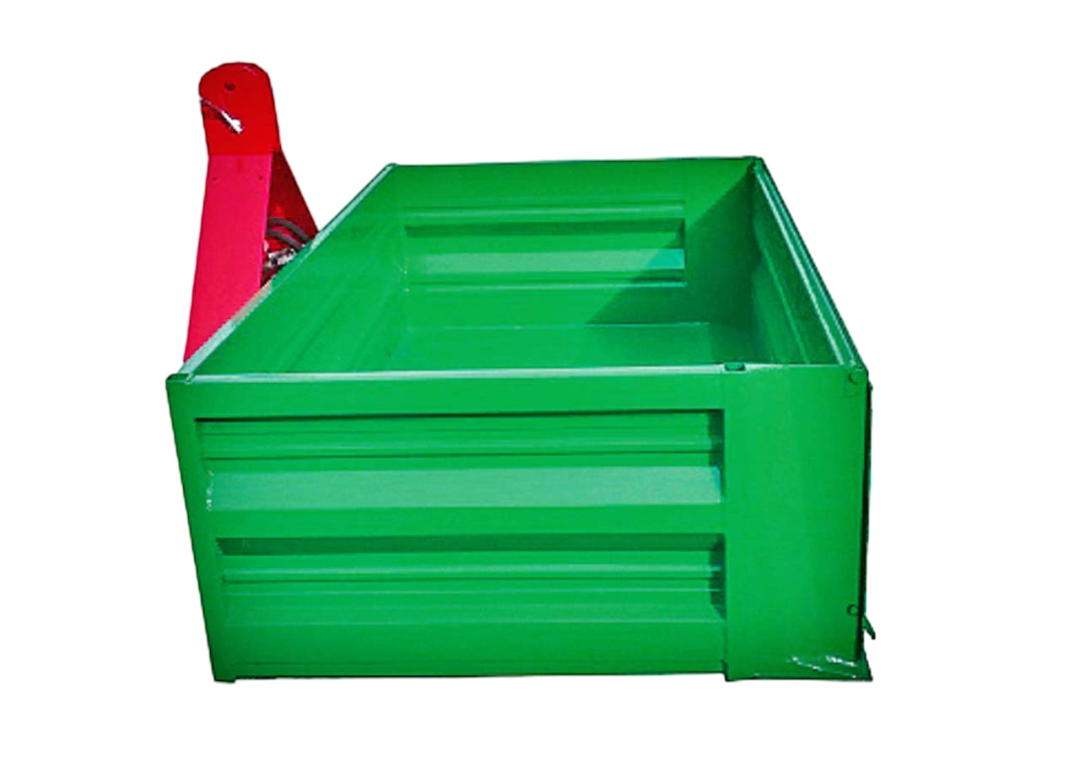

Mounted transport boxes, with hydraulic tipping, profiled
| Ref.No. | Width [m] | Length [m] | Height [m] | Capacity [kg] | Weight [kg] |
| 2519B | 1,5 | 1,18 | 0,5 | 750 | 324 |
| 2520B | 1,8 | 1,18 | 0,5 | 750 | 342 |
| 2521A | 2,0 | 1,18 | 0,5 | 750 | 354 |
Standard equipment
• 3-point linkage cat. I and II
• Supporting frame connected with a 3-point linkage
• Closing side – hinged
• Hydraulic tipping – one cylinder
• Powder painted
Optional equipment
• Increased tilt angle
Product number
2519B;2520B;2521A
Description
| Ref.No. | Width [m] | Length [m] | Height [m] | Capacity [kg] | Weight [kg] |
| 2519B | 1,5 | 1,18 | 0,5 | 750 | 324 |
| 2520B | 1,8 | 1,18 | 0,5 | 750 | 342 |
| 2521A | 2,0 | 1,18 | 0,5 | 750 | 354 |
