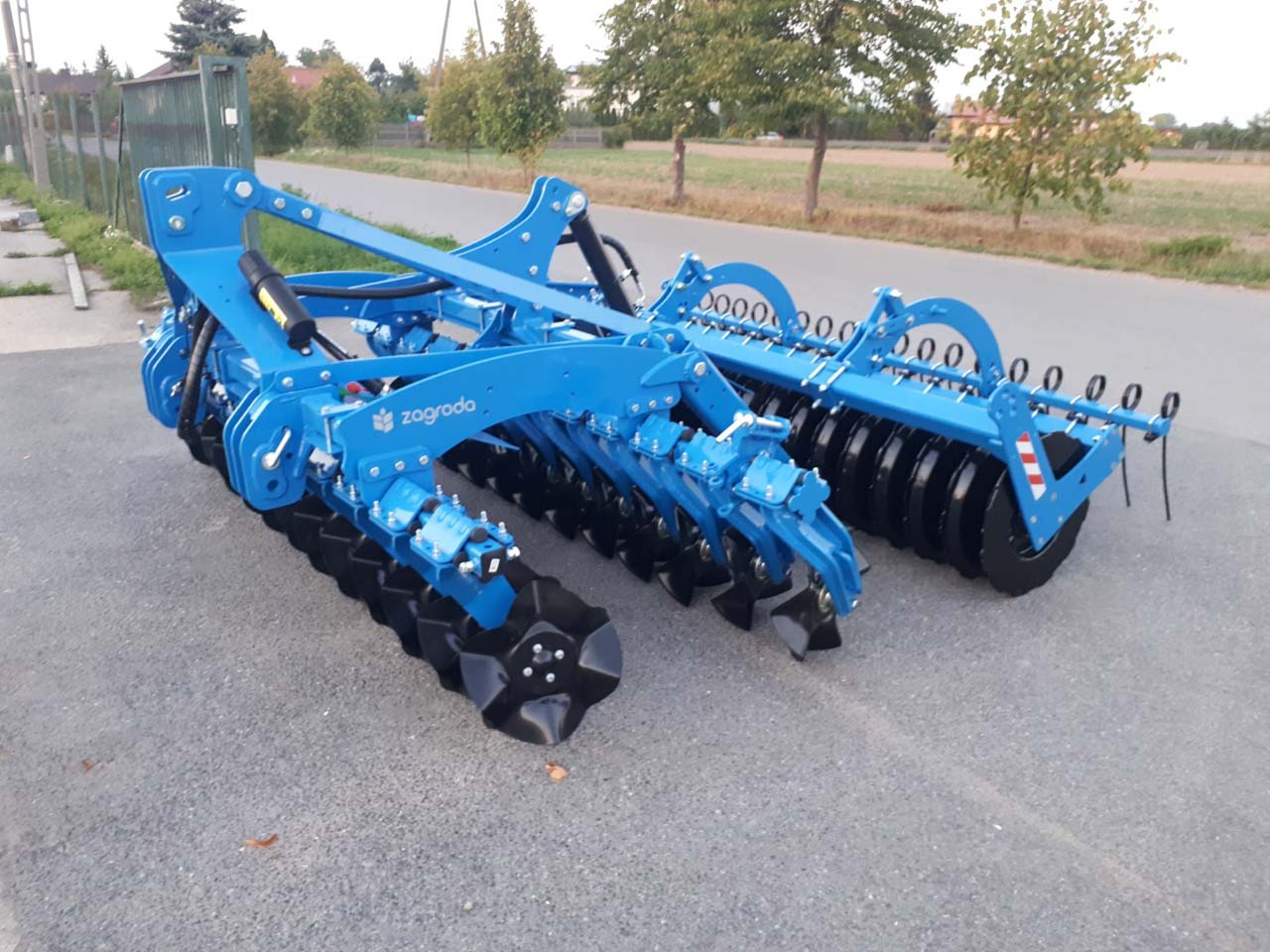

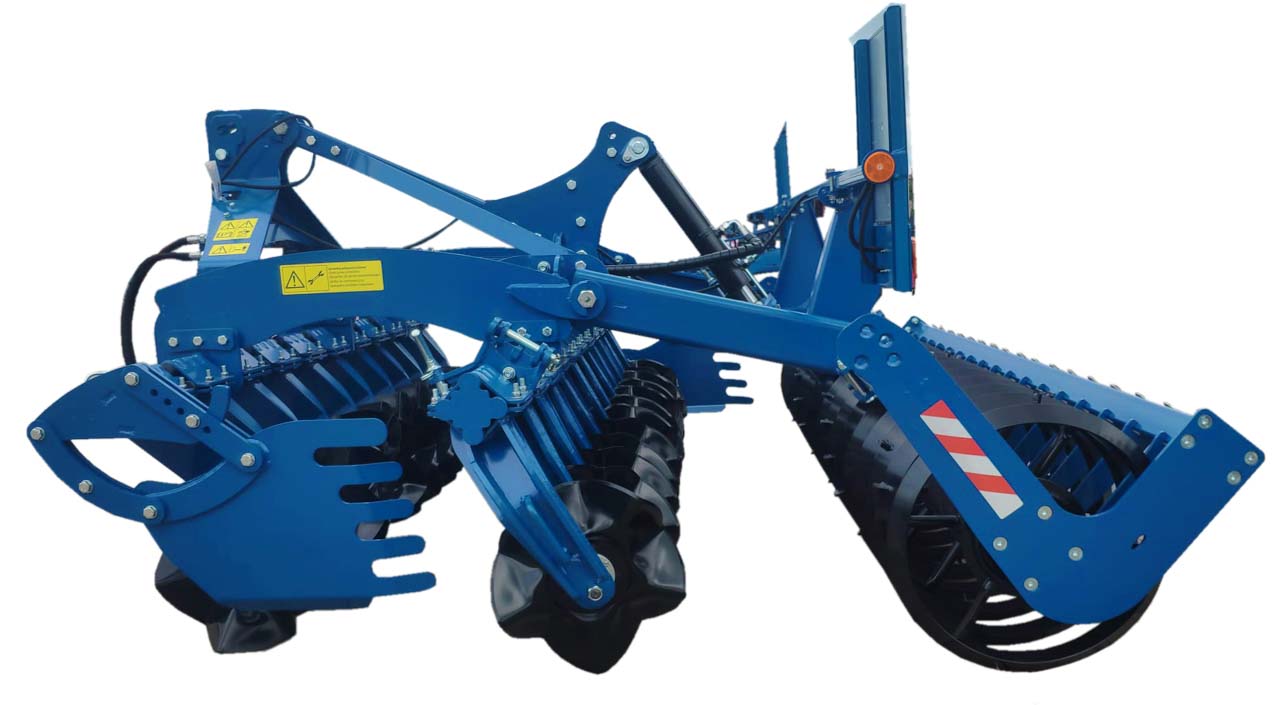

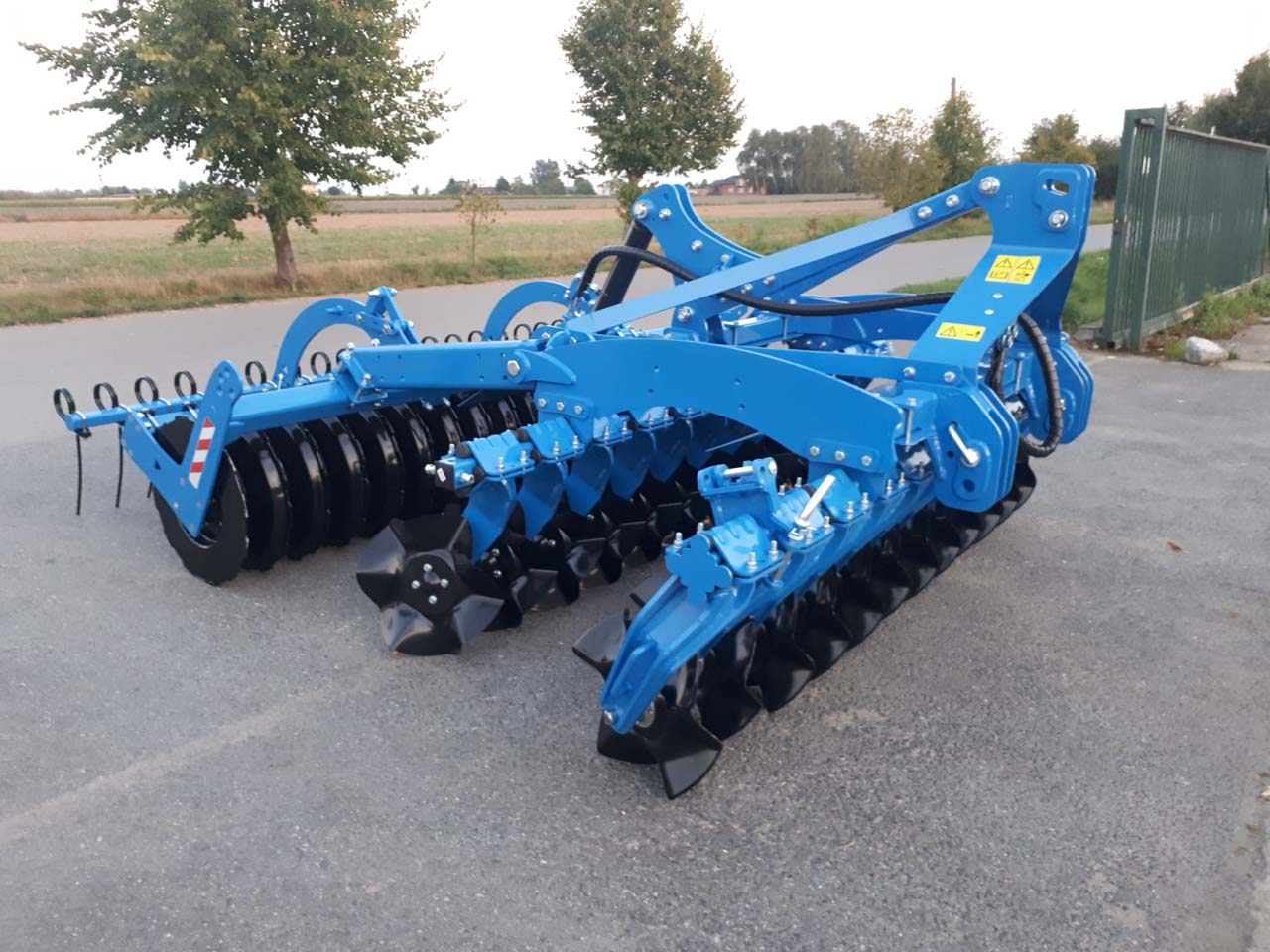

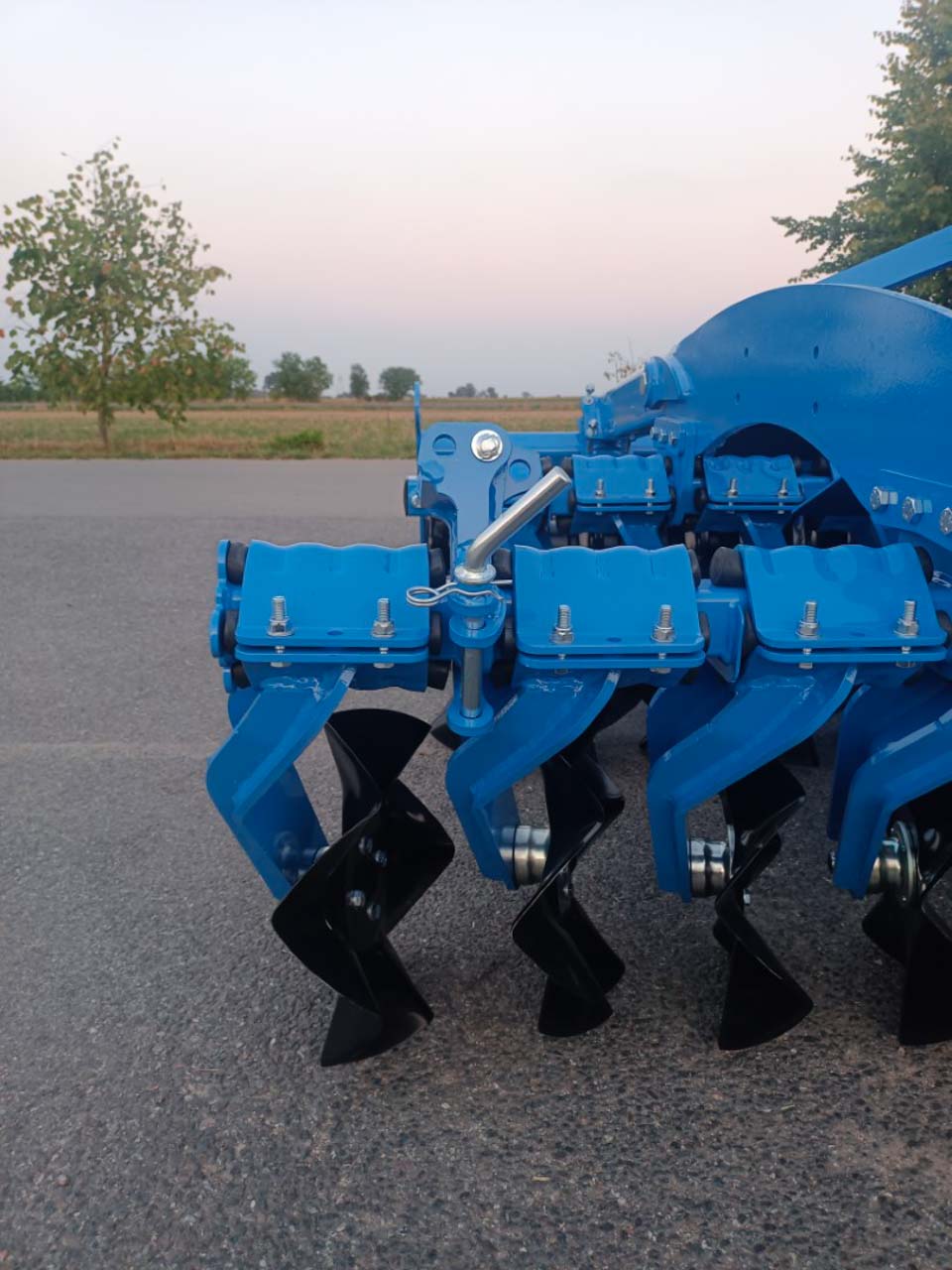

X-Cross disc harrow

Standard equipment

• 3-point linkage cat. II and III in mounted version,
• Drawbar with cat. III drawbar in semi-mounted version,

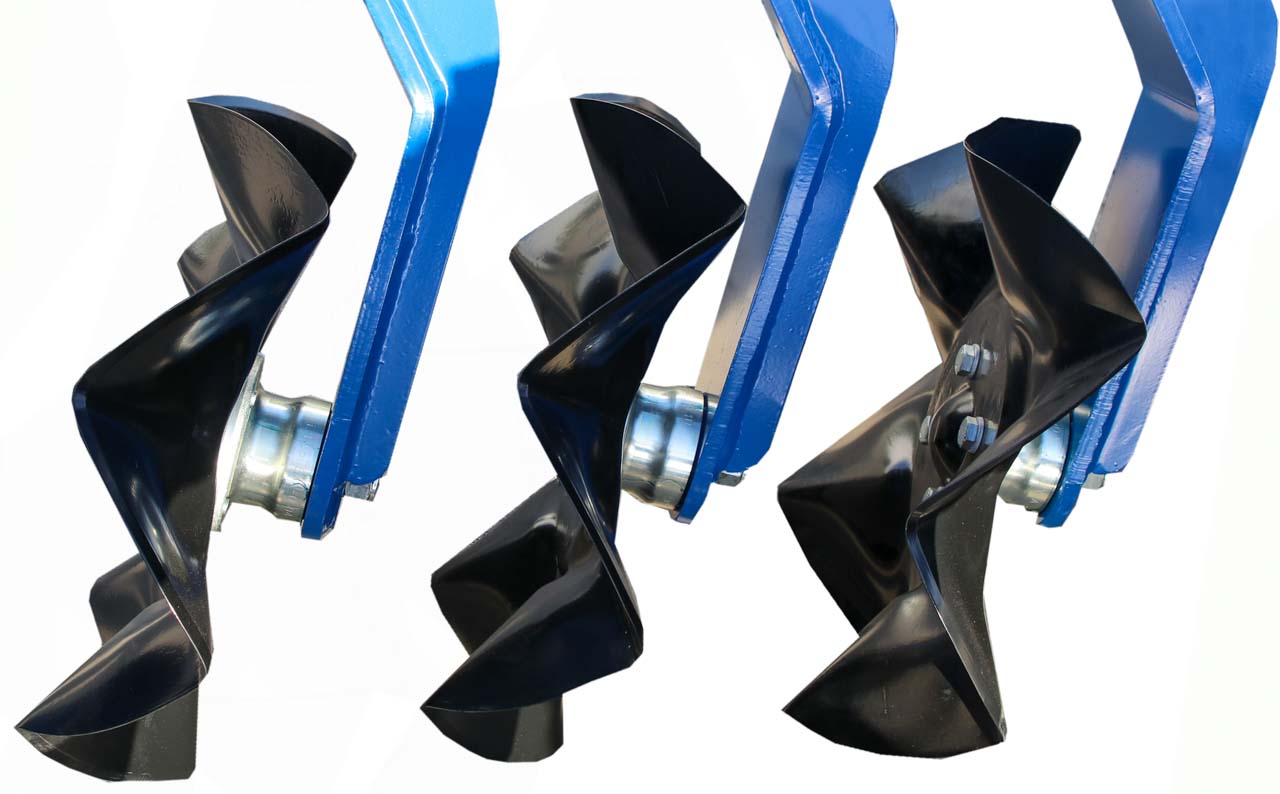

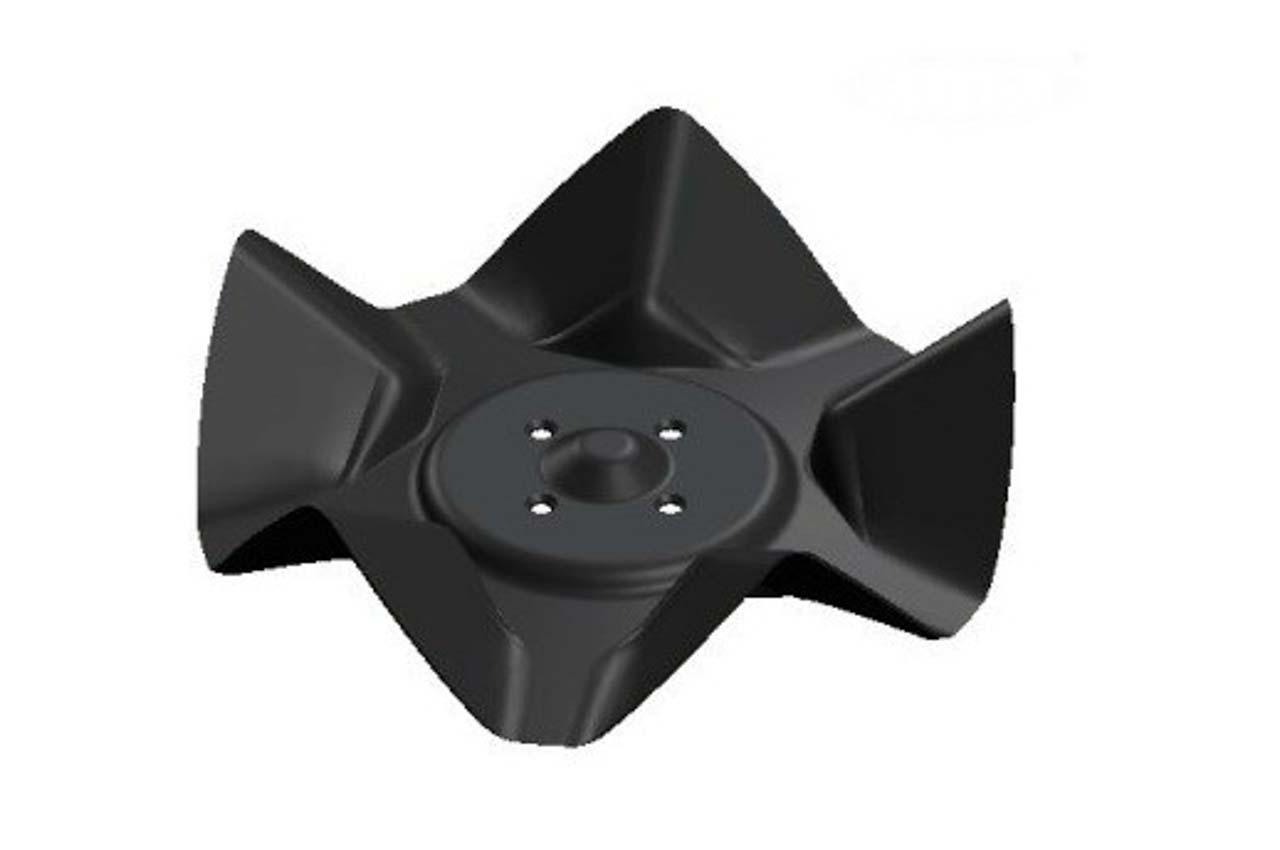

• 2 rows of cross-cut discs 440 mm,
• Distance between disc rows 90 cm,
• Tubular shaft ø 500 mm,

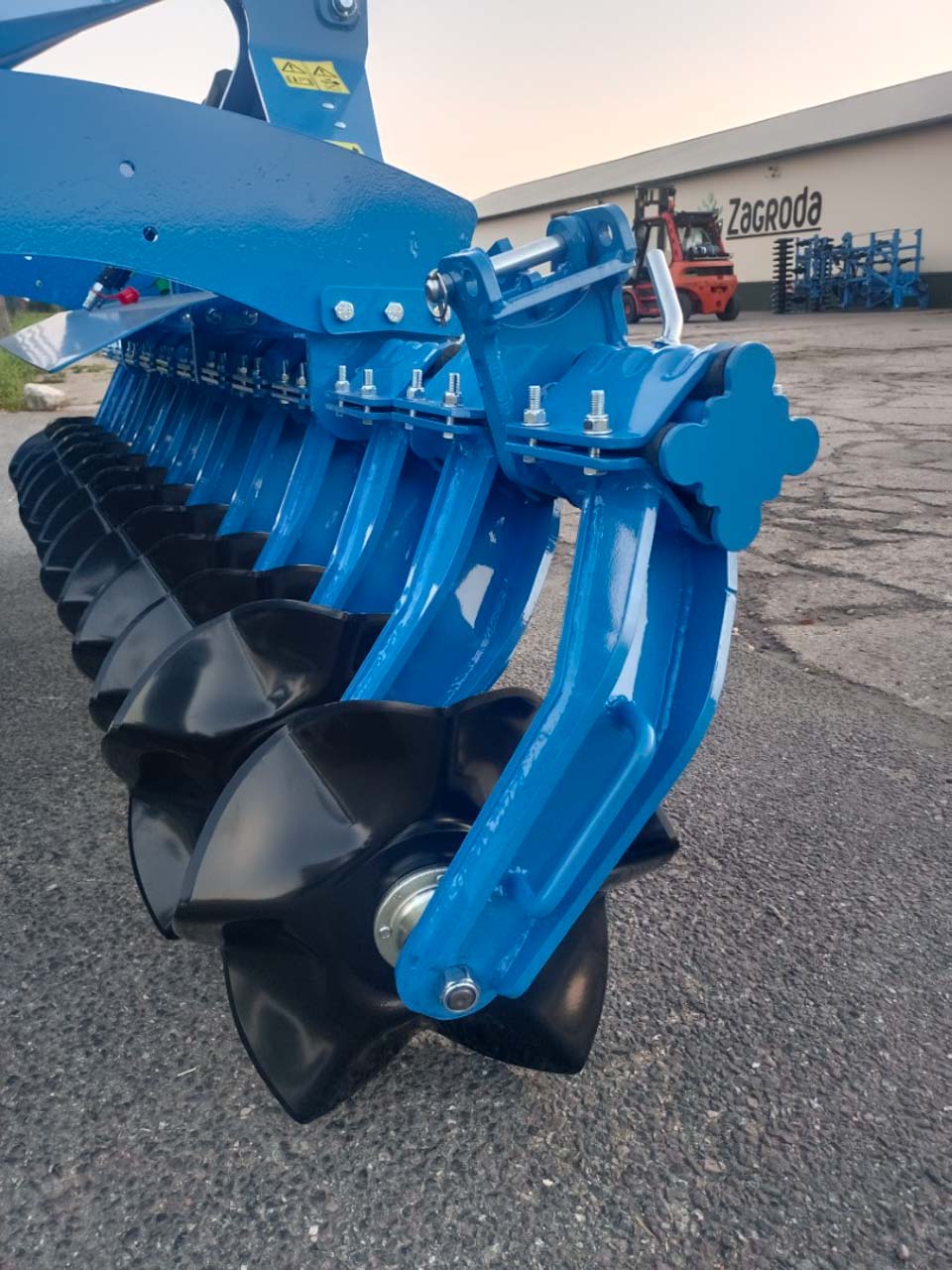

• Disc arms made of high-grade steel,
• Hydraulic working depth adjustment on the roller

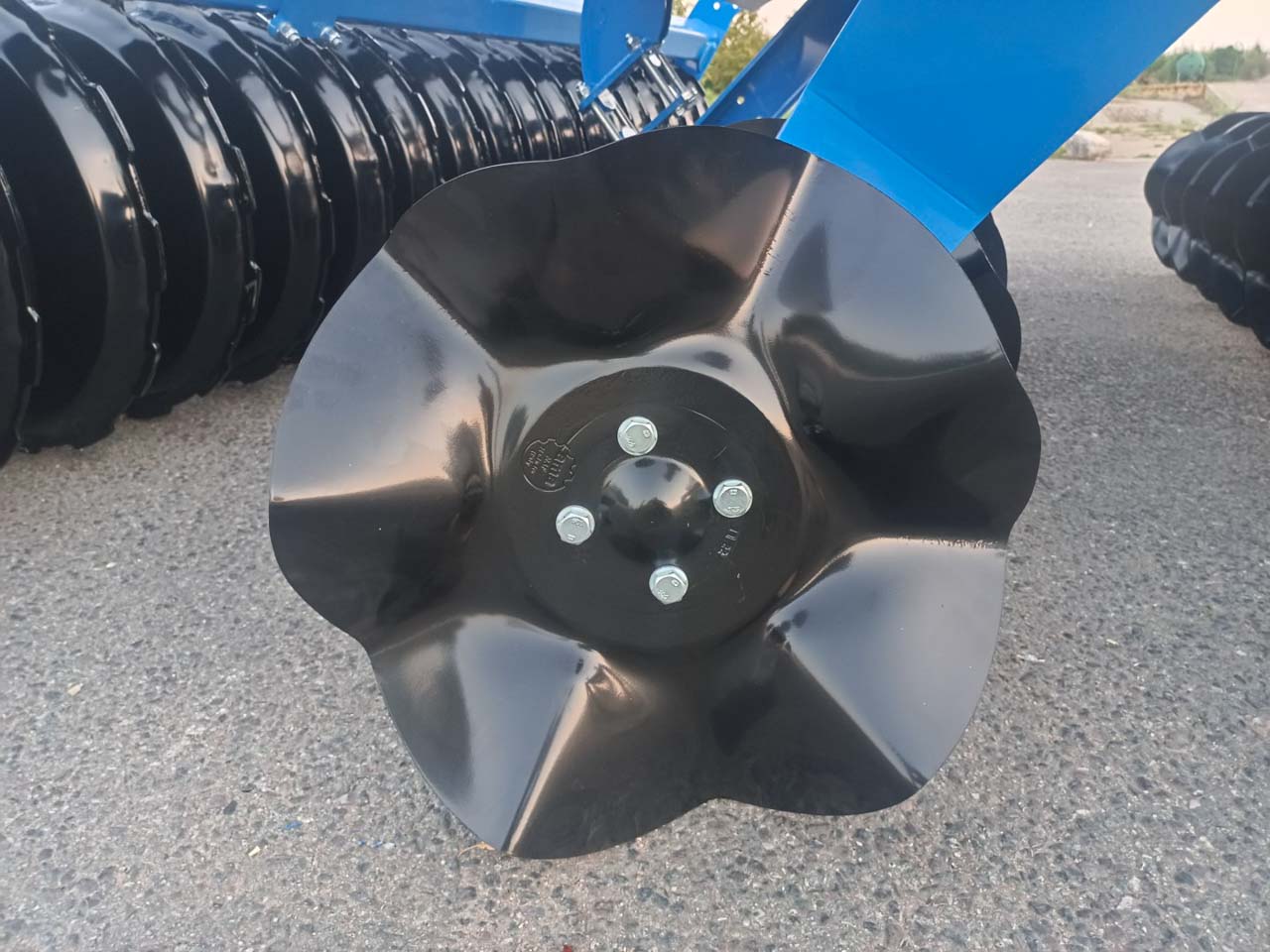

• Maintenance-free 4-hole hub,
• Working depth 2-3 cm,
• Height-adjustable side screens,

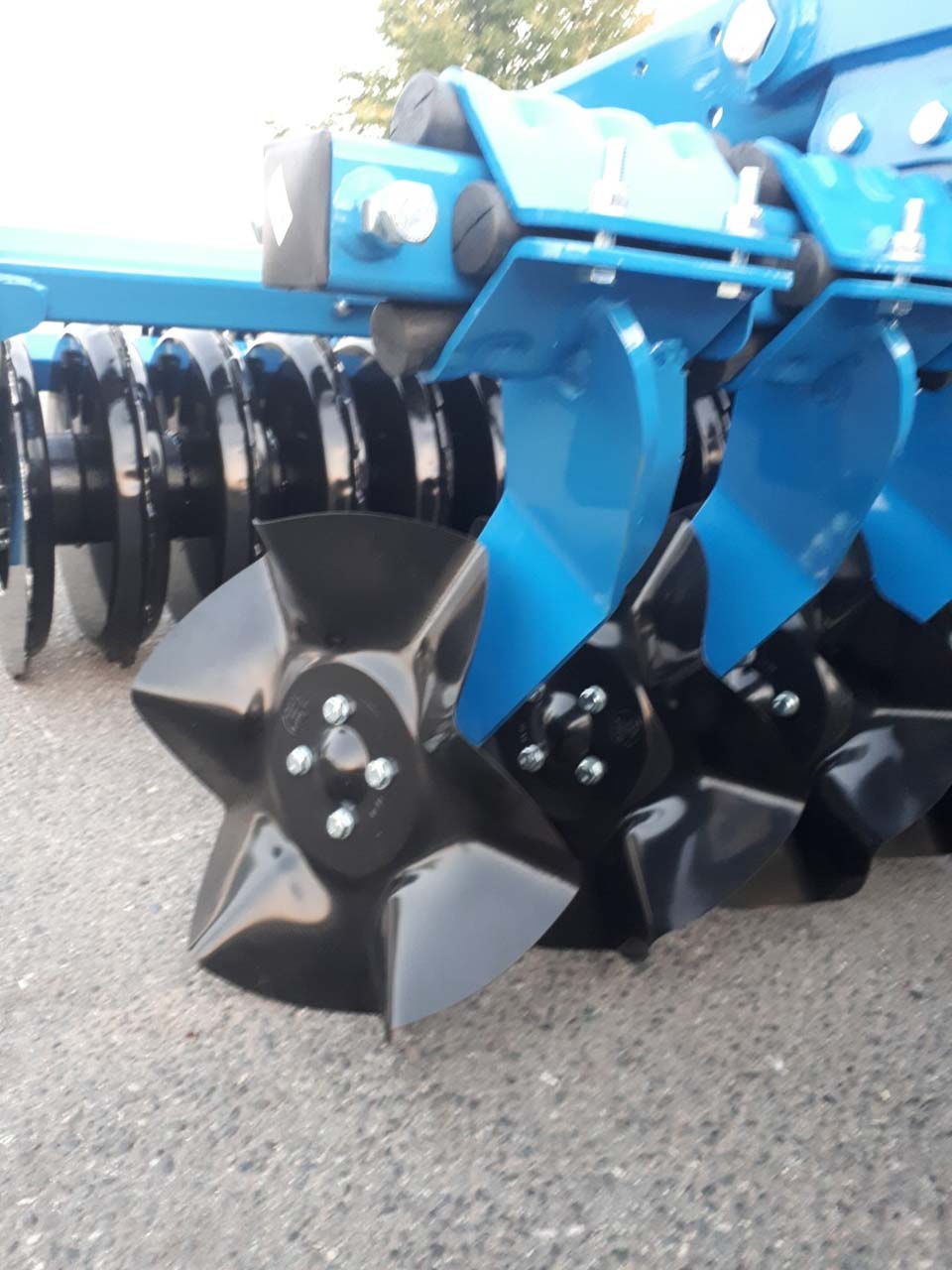

• Disc protection by means of rubber buffers ø 40 mm,
• Transport width less than 3.0m (except version 3.5m and 4.0m),
• Air brake as standard on 5m and 6m widths

Optional equipment

• Row of harrow springs mounted behind
• V-Ring-roller Ø 500mm
• V-Ring-roller Ø 600mm
• Tandem U-Ring Ø540mm
• Maintenance free hubs SKF
• Hydraulic brakes
• Pneumatic braking system
• Rear beam with LED light-ing

Product number
8551;8552;8553;8554;8555;8556
