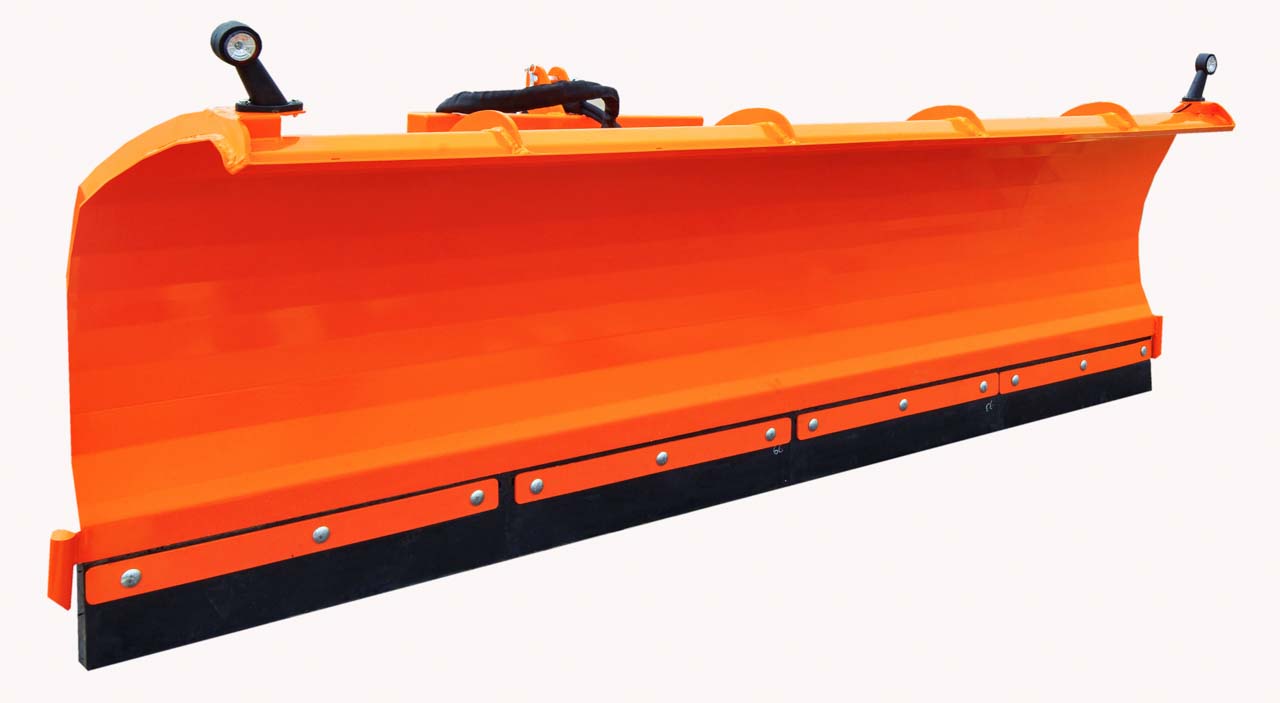

Universal straight snow plow
| Ref.No. | Working width [m] | Length/width/height [m] | Weight [kg] |
| 5114 | 2,2 | 1,2 / 2,2 / 0,9 | 360 |
| 5115 | 2,5 | 1,2 / 2,5 / 0,9 | 380 |
| 5116 | 2,7 | 1,2 / 2,7 / 0,9 | 400 |
| 5117 | 3,0 | 1,2 / 3,0 / 0,9 | 440 |
Standard equipment
• 3-point linkage cat. II
• Mouldboard height 90,0/83,0cm
• Mouldboard turning angle (right and left) up to 30 °
• Mouldboard hydraulic control – two cylinders
• Side ground copying system at the hitch frame in the range of: lateral tilt +/- 5⁰
• Blade spring protection
• 50 mm rubber strip, holes with a pitch of 305 mm
• Required number of hydraulic connections 2 (1 pair)
• LED lights
Optional equipment
• Skids
• 160/50 or 200/50 support wheels
• Blade made of 150 x 16mm wear-resistant steel
• 150 x 25mm polyurethane blade
• Hydraulic overload protection
• 3-point linkage cat. II and III or EURO mount and 3-point linkage cat. II
• Other type of mount for teleshandlers or mini loader
Product number
5114;5115;5116;5117
Description
| Ref.No. | Working width [m] | Length/width/height [m] | Weight [kg] |
| 5114 | 2,2 | 1,2 / 2,2 / 0,9 | 360 |
| 5115 | 2,5 | 1,2 / 2,5 / 0,9 | 380 |
| 5116 | 2,7 | 1,2 / 2,7 / 0,9 | 400 |
| 5117 | 3,0 | 1,2 / 3,0 / 0,9 | 440 |
