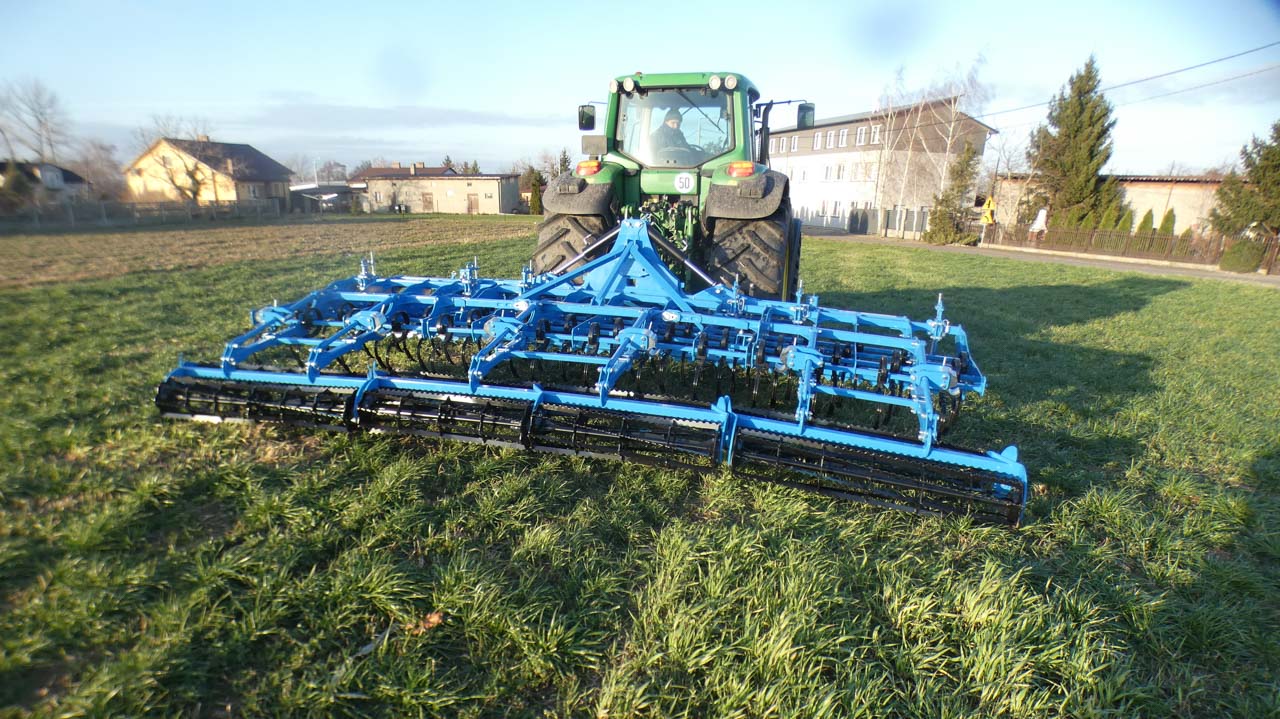

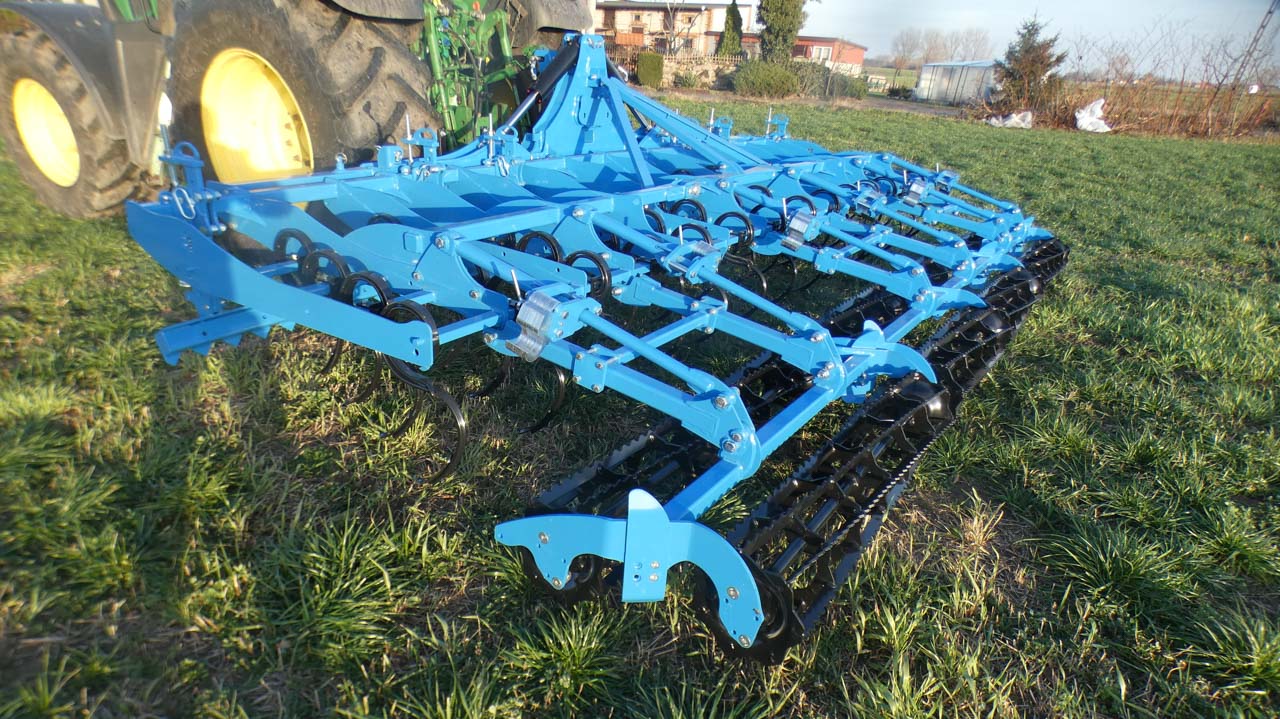

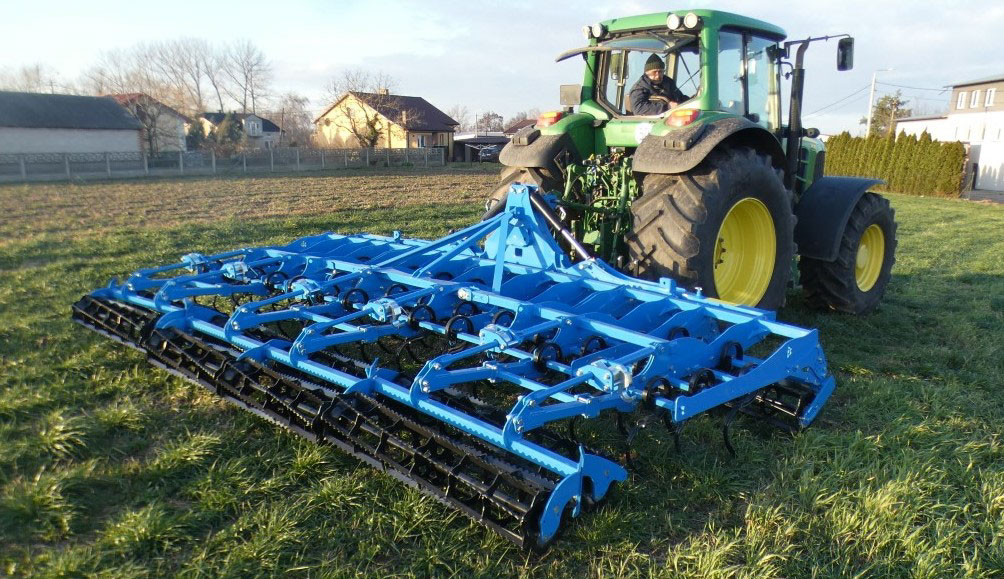

Seedbed combination with cultivator tines
| Ref.No. | Working width [m] | Folding | Number of tines [pcs.] | Power demand [HP] | Weight [kg] |
| 8451AP | 3 | Mechanical | 30 | 80 | 715 |
| 8452AP | 3,5 | Mechanical | 35 | 85 | 790 |
| 8453APM | 4 | Mechanical | 40 | 90 | 885 |
| 8453AP | 4 | Hydraulic | 41 | 90 | 1520 |
| 8454AP | 4,5 | Hydraulic | 45 | 100 | 1600 |
| 8455AP | 5 | Hydraulic | 51 | 120 | 1680 |
| 8456AP | 5,5 | Hydraulic | 55 | 140 | 1785 |
| 8457AP | 6 | Hydraulic | 61 | 160 | 1890 |
| 8451BP | 3 | Mechanical | 30 | 80 | – |
| 8452BP | 3,5 | Mechanical | 35 | 85 | – |
| 8453BPM | 4 | Mechanical | 40 | 90 | – |
| 8453BP | 4 | Hydraulic | 41 | 90 | – |
| 8454BP | 4,5 | Hydraulic | 45 | 100 | – |
| 8455BP | 5 | Hydraulic | 51 | 120 | – |
| 8456BP | 5,5 | Hydraulic | 55 | 140 | – |
| 8457BP | 6 | Hydraulic | 61 | 160 | – |
| 8451CP | 3 | Mechanical | 30 | 80 | – |
| 8452CP | 3,5 | Mechanical | 35 | 85 | – |
| 8453CPM | 4 | Mechanical | 40 | 90 | – |
| 8453CP | 4 | Hydraulic | 41 | 90 | – |
| 8454CP | 4,5 | Hydraulic | 45 | 100 | – |
| 8455CP | 5 | Hydraulic | 51 | 120 | – |
| 8456CP | 5,5 | Hydraulic | 55 | 140 | – |
| 8457CP | 6 | Hydraulic | 61 | 160 | – |
Standard equipment
• Wersja A – cultivator with roller, smooth front roller ø 300mm, mechanical depth adjustment
• Wersja B – front levelling bar instead of roller
• Wersja C – without front bar and front roller
• 3-point linkage cat. II and cat. III with coupling pins
• 4 rows of cultivator tines, type SU 32×12, reinforced with a double sided straight coulter 35x200x5mm
• Double rear string toothed roller, ø 300mm
• Rollers of the cultivator include maintenance free bearing

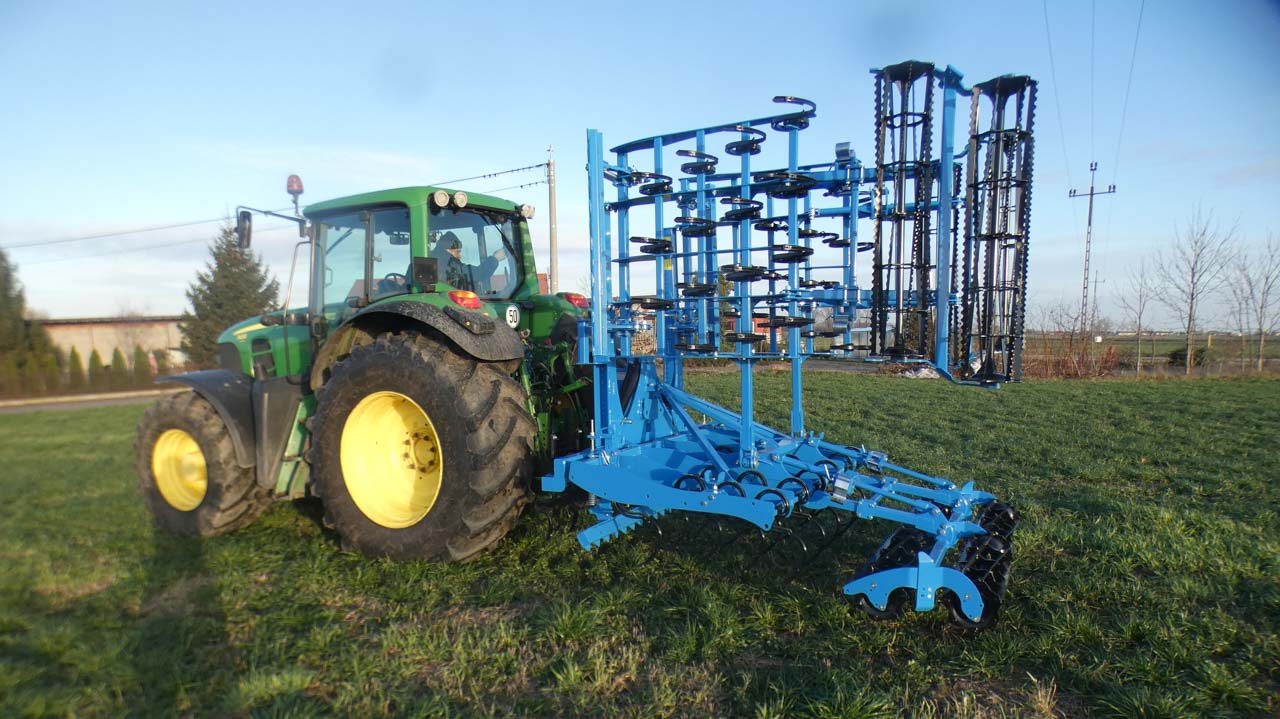

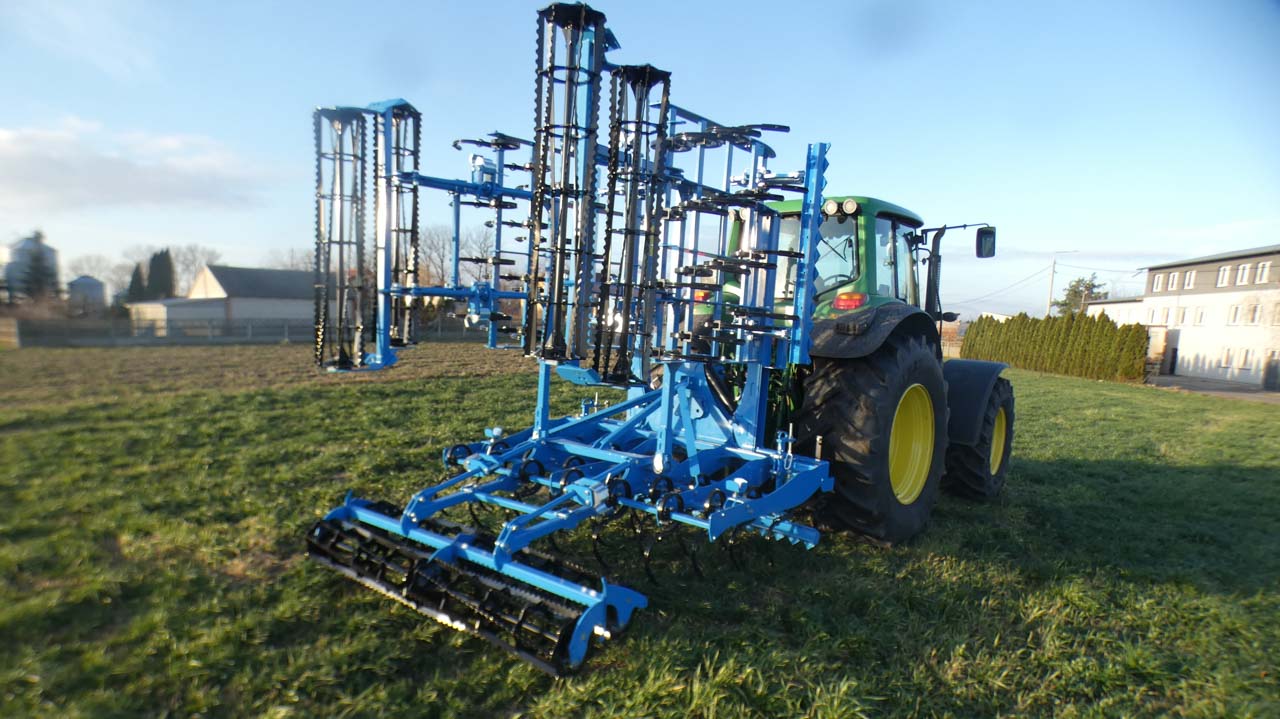

• Hydraulic folding to the transport position from width of 4,0m
• Working depth up to 13cm
• Transport width up to 3,0m
• Mechanical lock of the arms for transport
• Tractor track eradicators
Optional equipment
• Straight tooth SU reinforcement
• Coulter 100 mm wide (duck foot) – option for a bent tine
• Hydraulic arm locking for transport
• Rear boom with LED lights
Product number
8451AP;8451BP;8451CP;8452AP;8452BP;8452CP;8453APM;8453BPM;8453CPM;8453AP;8453BP;8453CP;8454AP;8454BP;8454CP;8455AP;8455BP;8455CP;8456AP;8456BP;8456CP;8457AP;8457BP;8457CP
