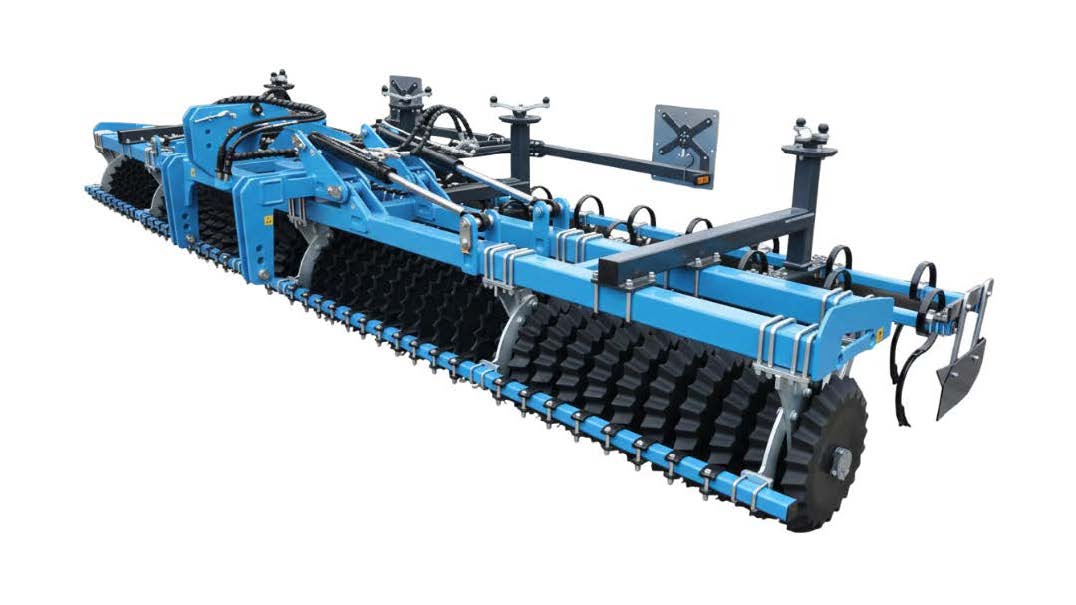

Prism packer roller for front and rear mounting with fixed 3-point-linkage
| RÉF. | Working width [m] | Number of rings [pcs.] | Power demand [HP] | Weight [KG] |
|---|---|---|---|---|
| 9116AD | 4,0 | 32 | 140 | 1500 |
| 9117AD | 4.5 | 36 | 180 | 1650 |
| 9118AD | 5,0 | 40 | 200 | 1850 |
| 9119AD | 6,0 | 48 | 2400 | 2200 |
Standard equipment
• 3-point linkage, cat. II, fixed
• Front and rear mounting
• Ring diameter Ø 530 mm
• Hydraulically foldable
Optional equipment
• Front 1 row harrow of cultivator S type tines 32×10 with straight double coulter
• Front 1 row harrow of cultivator straight tines 32×10 with straight double coulter
• Front 2 rows harrow of cultivator S type tines 32×10 with straight double coulter
• Front 2 rows harrow of cultivator straight tines 32×10 with straight double coulter
• Front spring levelling board with spring tines 150mm
• Knife harrow
• Hydraulic working height adjustment of the cultivator (one section)
• LED lighting
Product number
9116AD-9119AD
Description
| RÉF. | Working width [m] | Number of rings [pcs.] | Power demand [HP] | Weight [KG] |
|---|---|---|---|---|
| 9116AD | 4,0 | 32 | 140 | 1500 |
| 9117AD | 4.5 | 36 | 180 | 1650 |
| 9118AD | 5,0 | 40 | 200 | 1850 |
| 9119AD | 6,0 | 48 | 2400 | 2200 |
