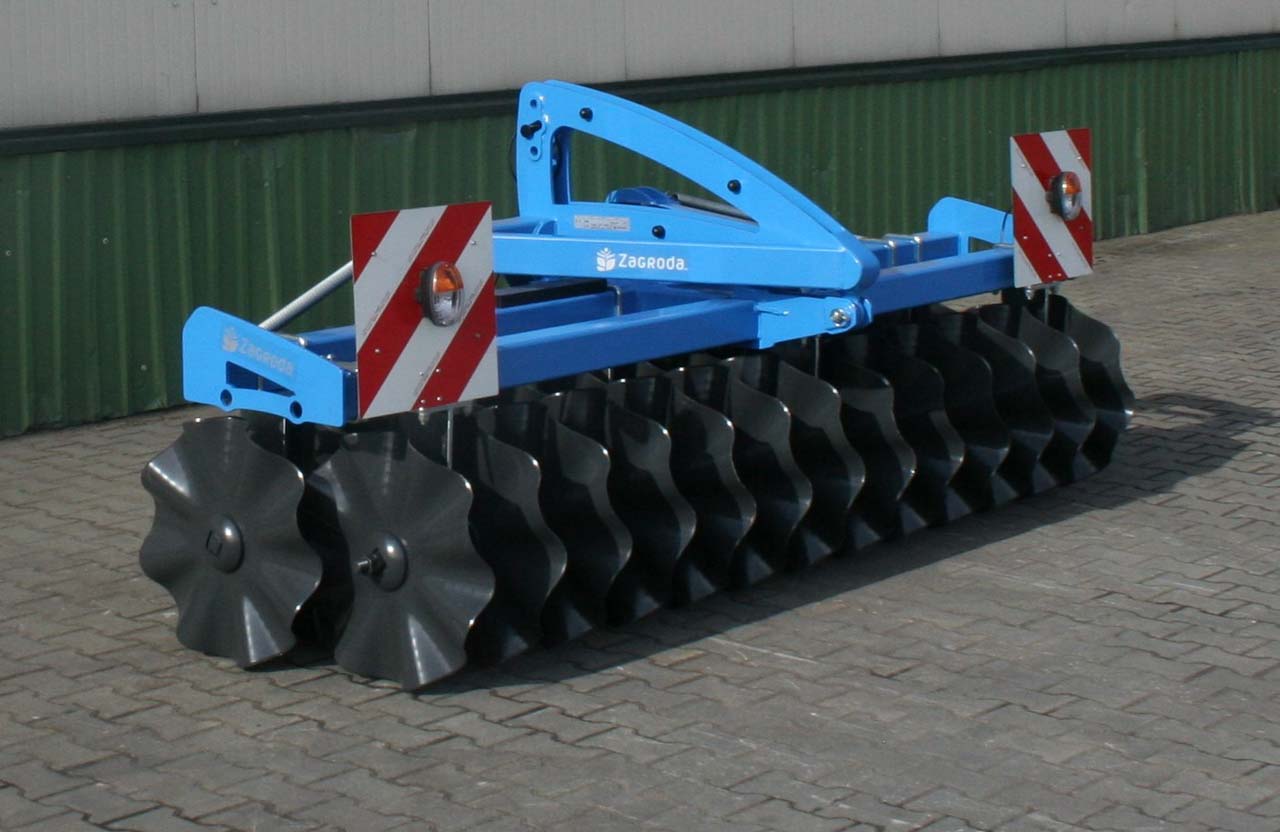

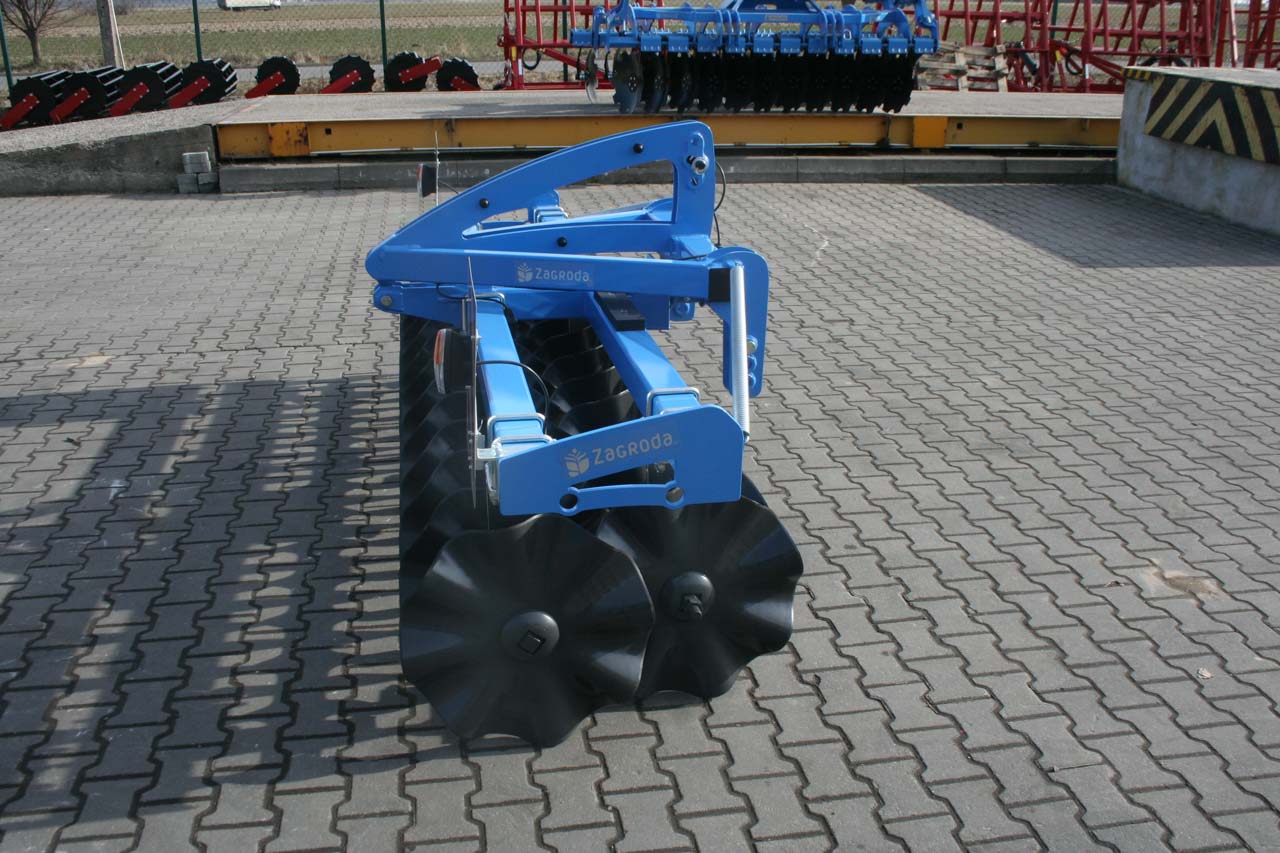

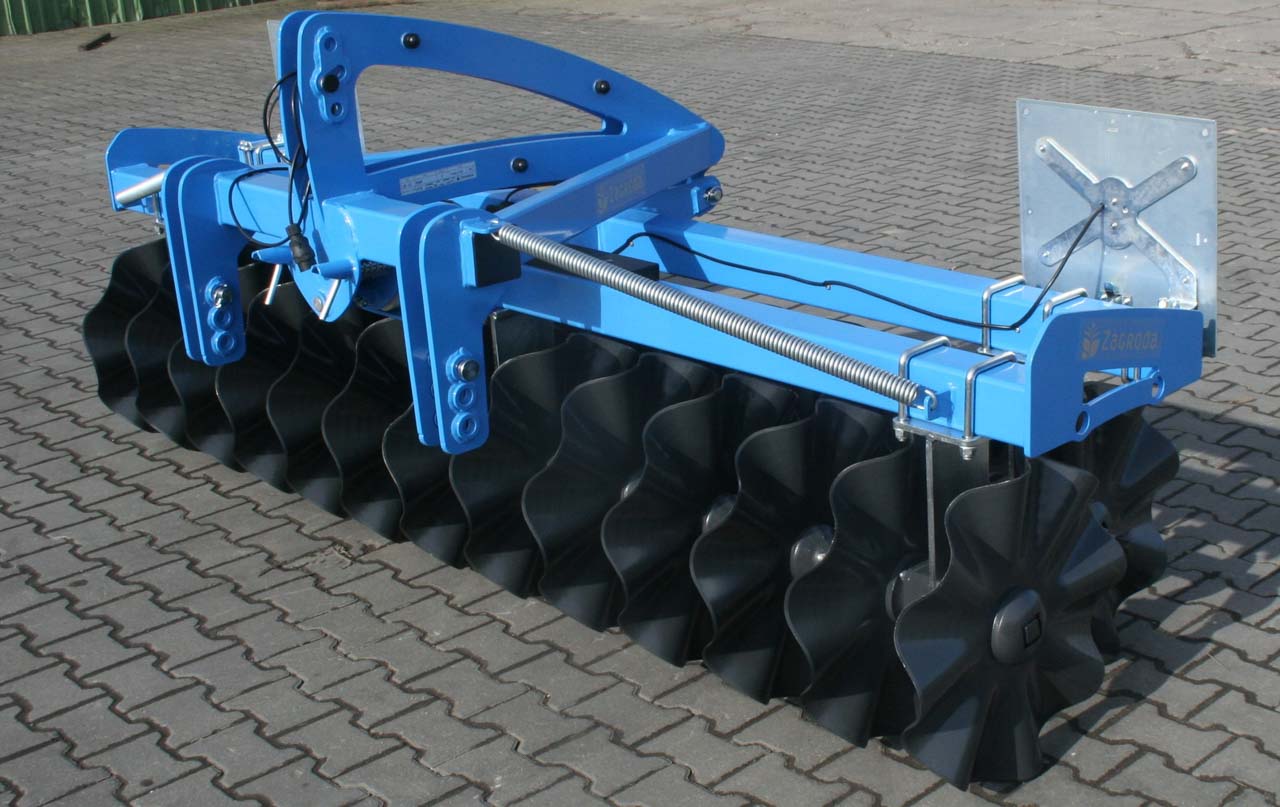

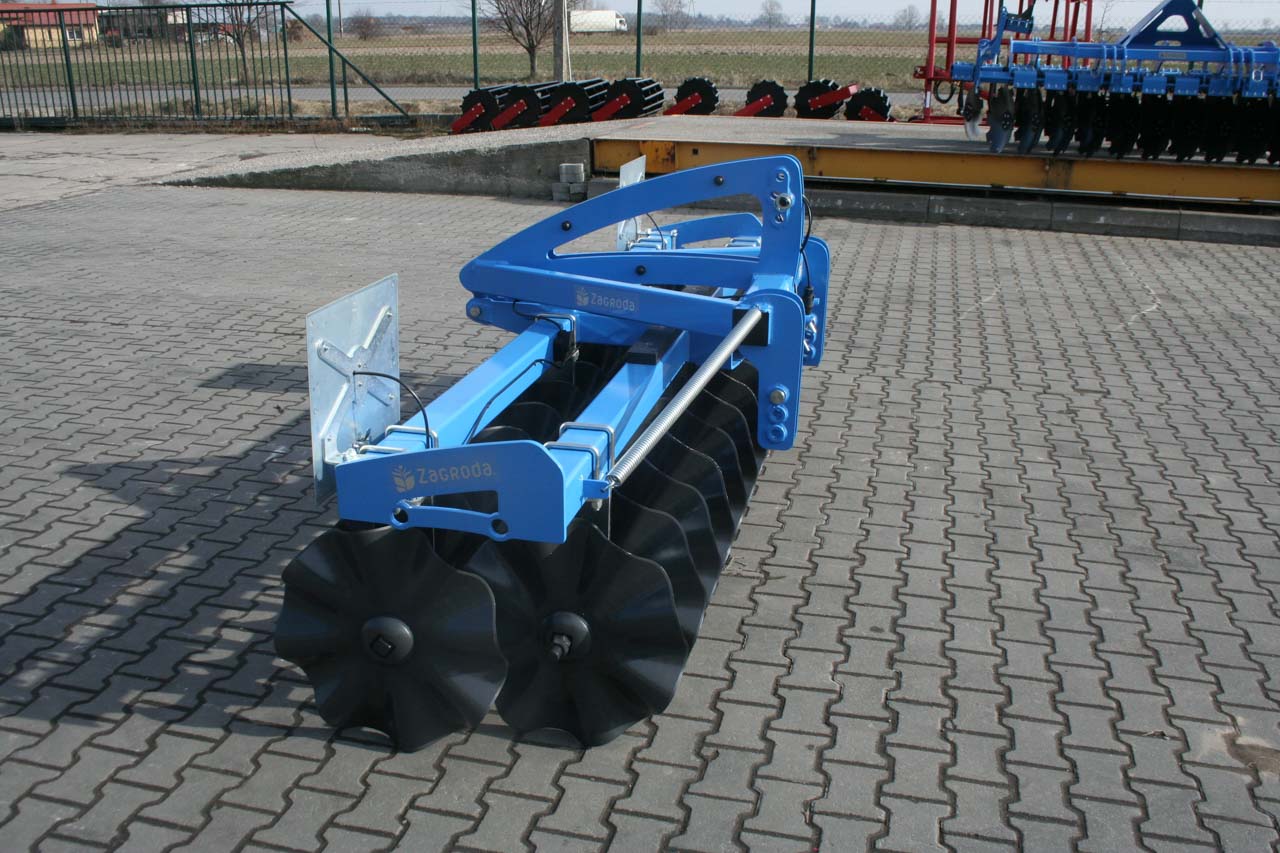

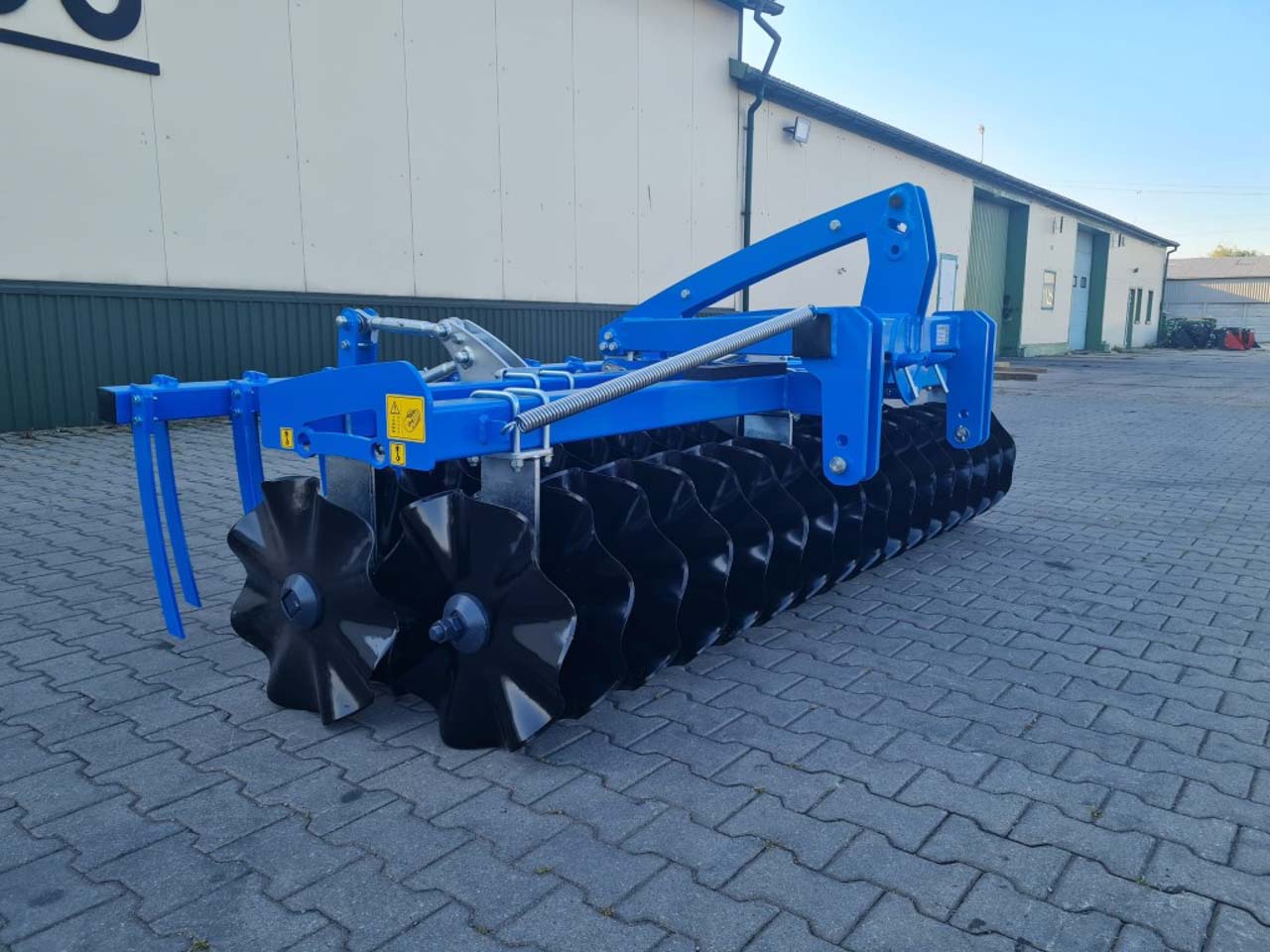

Front disc roller
| Ref.No. | Hydraulic folding | Working width [m] | Number of discs for MULTIDISC [pcs.] | Weight [kg] |
|---|---|---|---|---|
| 8500 | – | 2,5 | 28 | 620 – 1300 |
| 8501 | – | 2,7 | 30 | 700 – 1400 |
| 8502 | – | 3,0 | 32 | 780 – 1500 |
| 8503 | + | 4,0 | 43 | 1250 |
| 8504 | + | 4,5 | 48 | 1350 |
| 8505 | + | 5,0 | 54 | 1500 |
| 8506 | + | 6,0 | 64 | 1750 |
Standard equipment

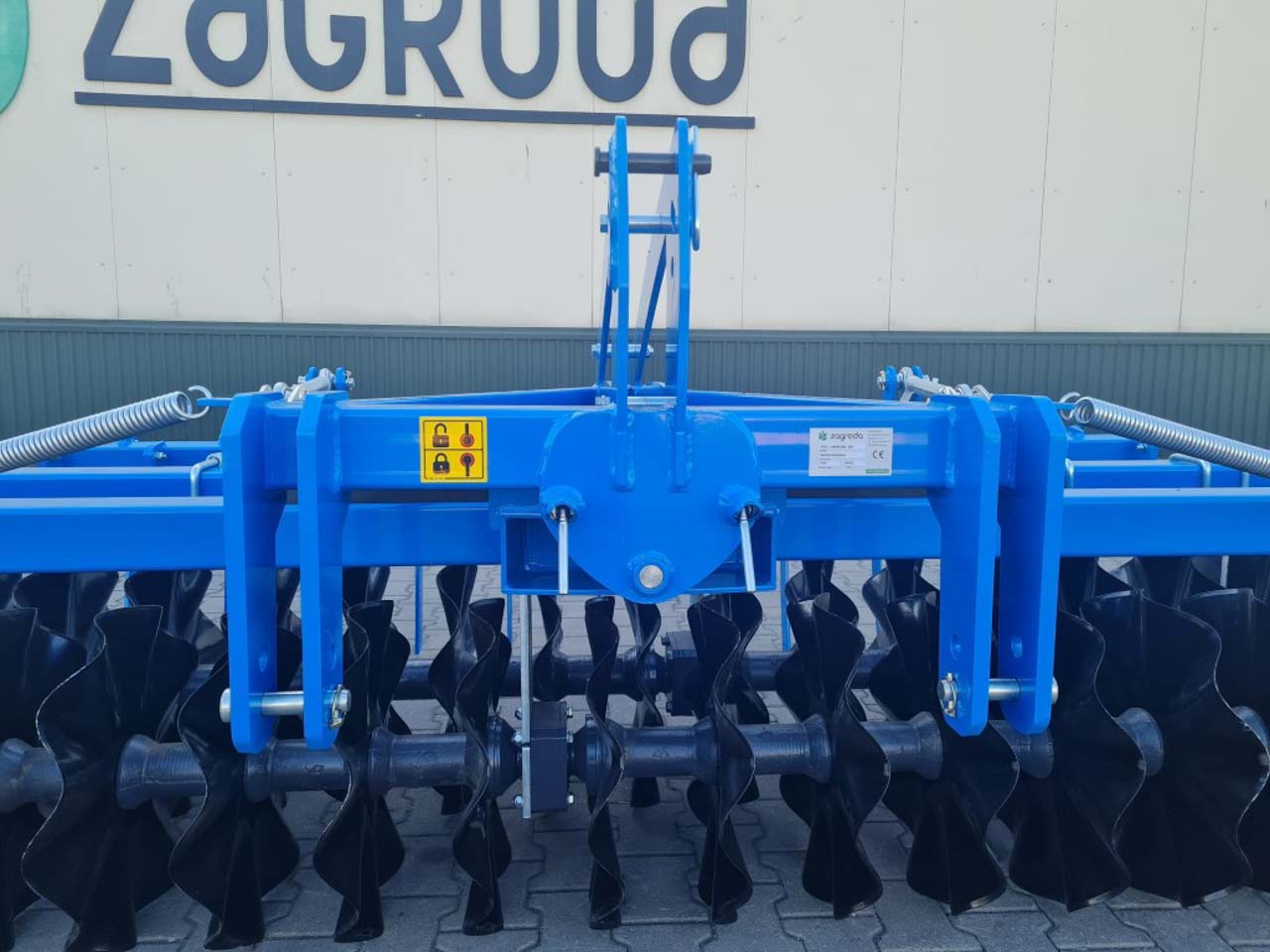

• 3-point linkage cat. II
• Transport width up to 3,0m

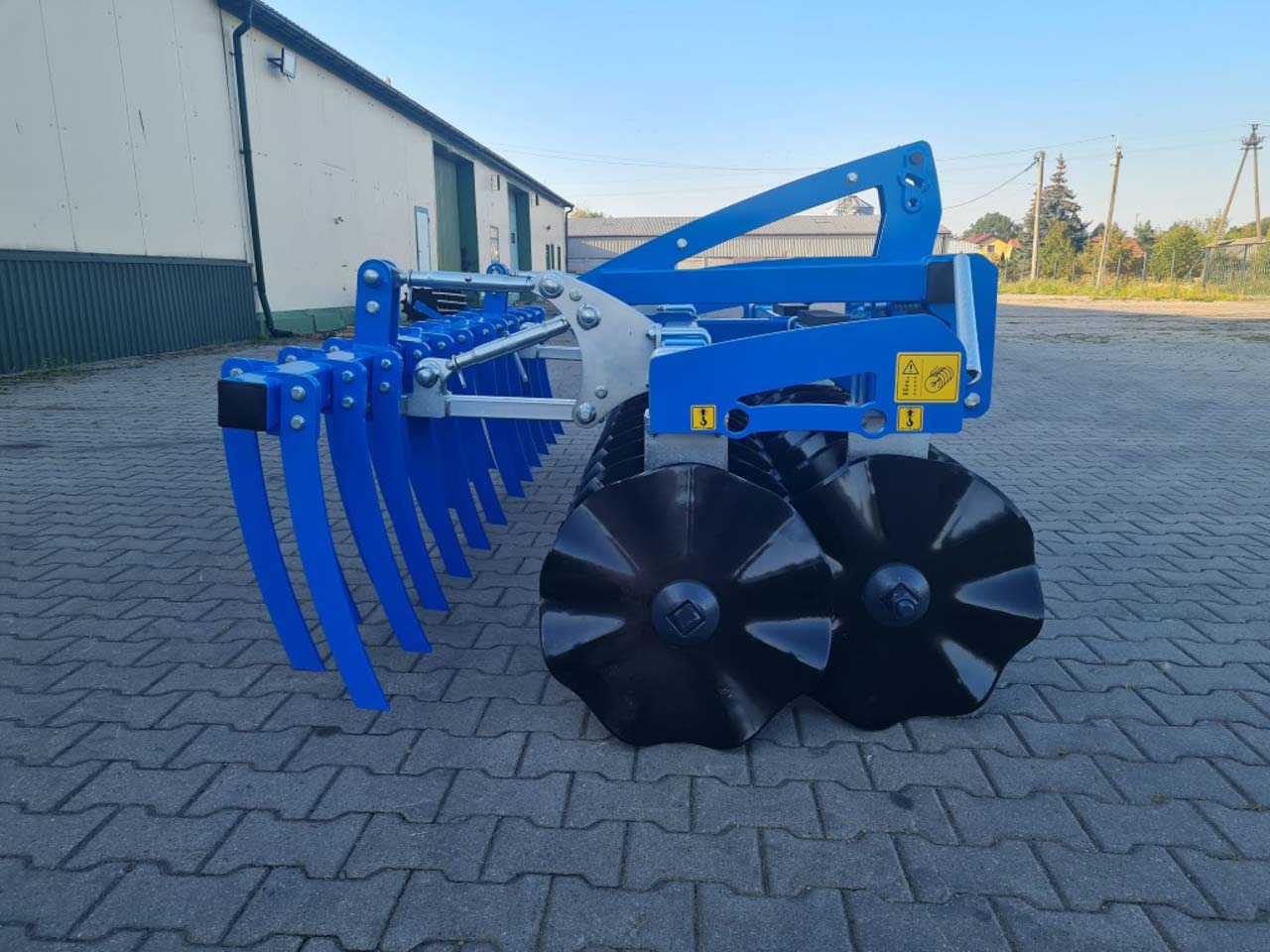

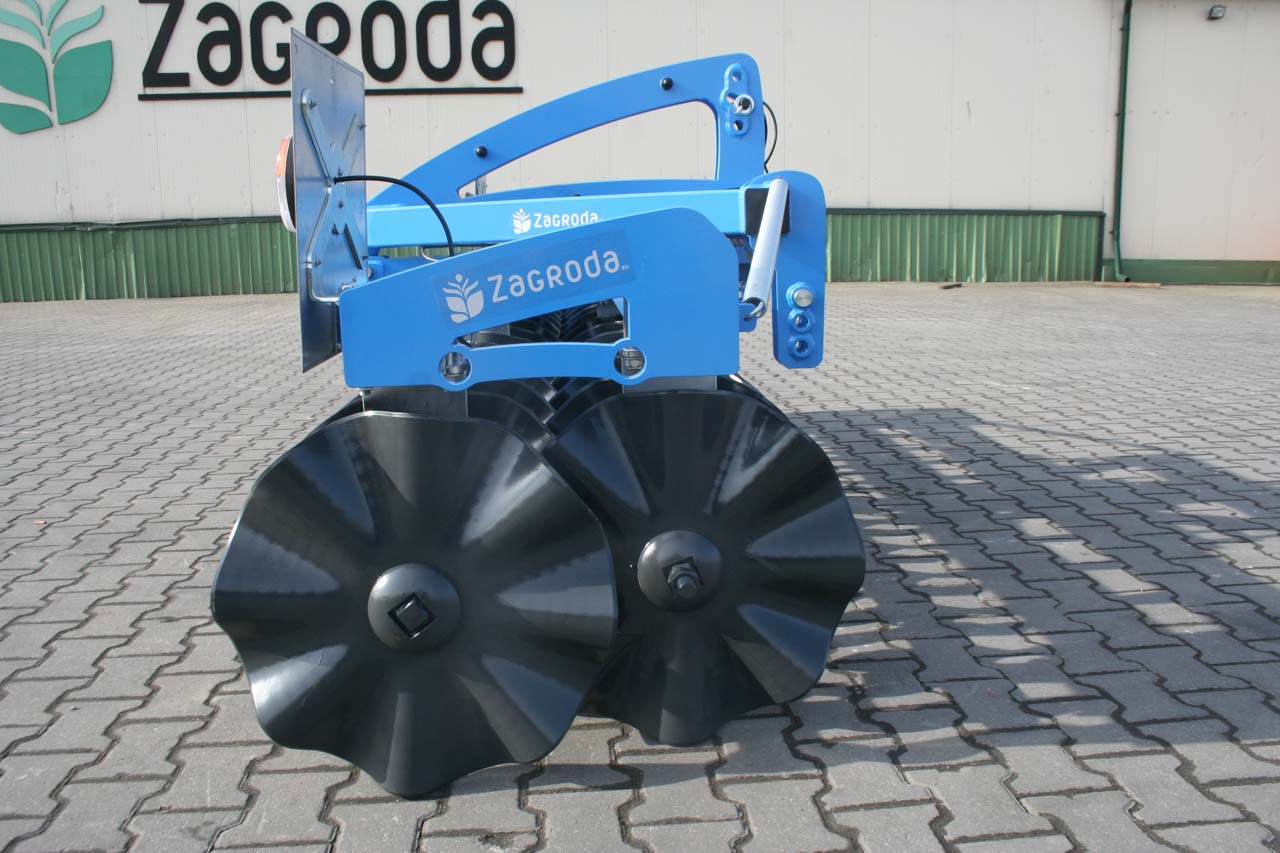

• Two rows of wavy discs: Ø 520mm
• Swivel suspension of the main frame

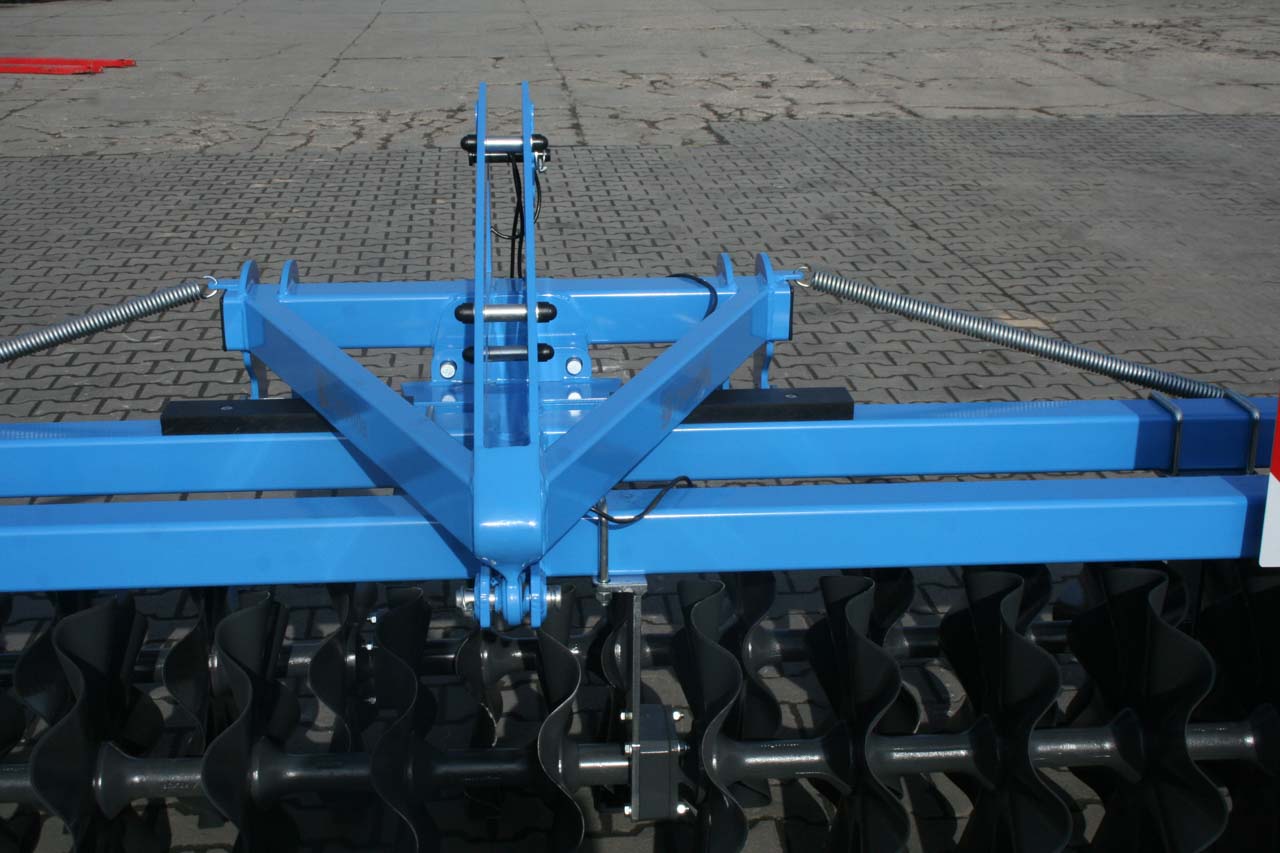

• 2 springs maintaining working position
• Hydraulically foldable from 4.0 m
Optional equipment

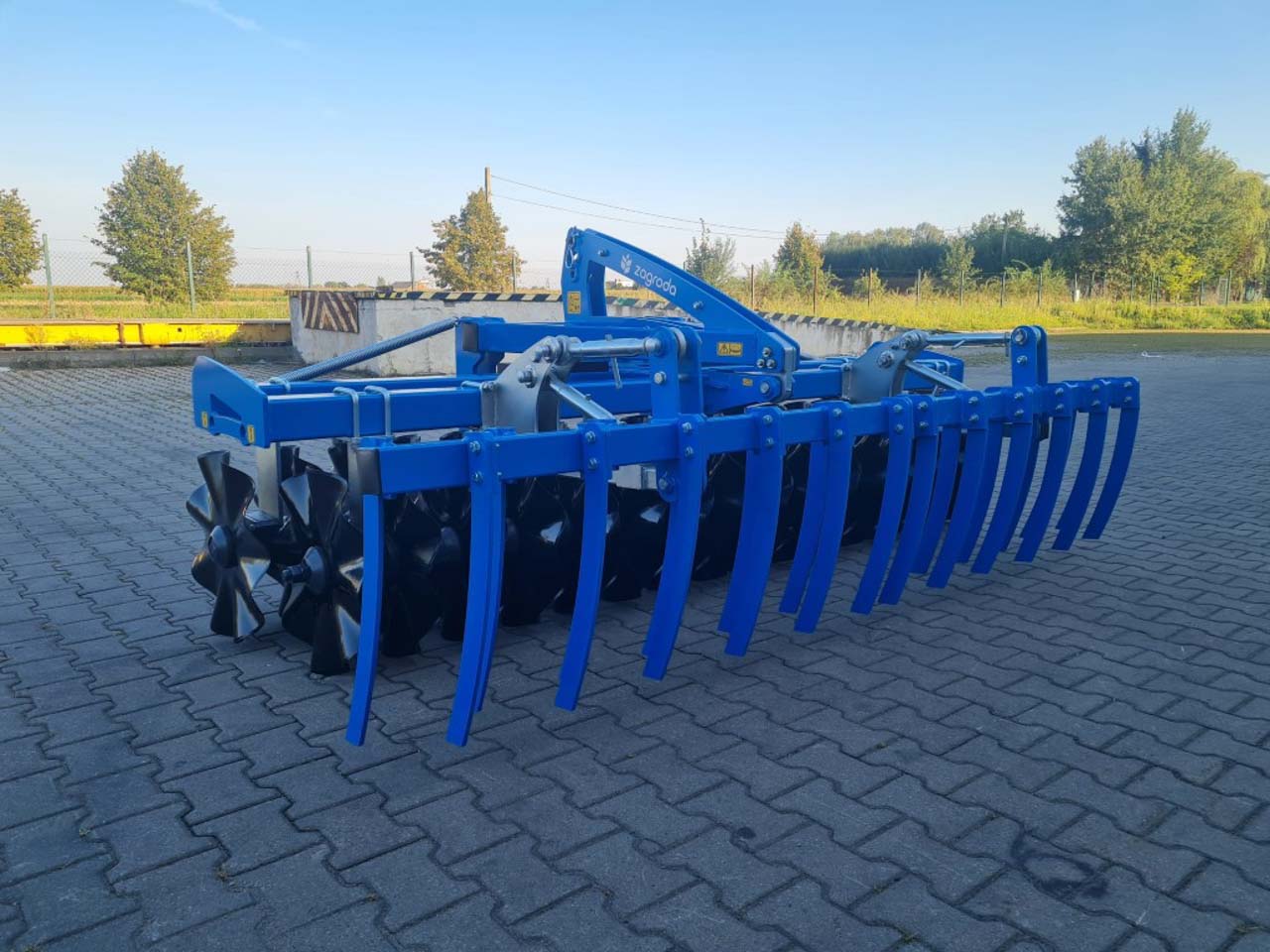

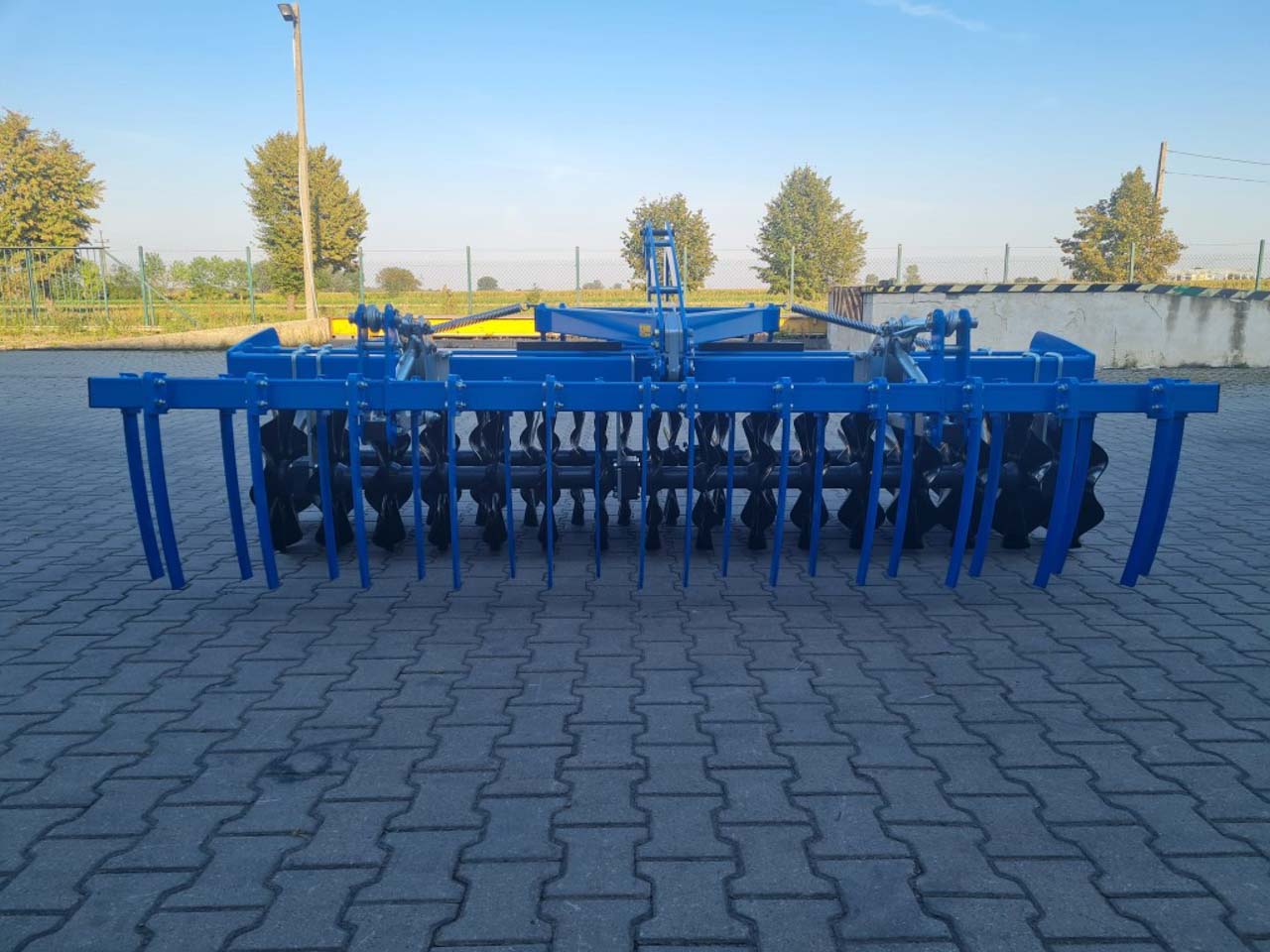

• Front 1-row harrow of cultivator tines S-type 32×10 with straight double coulter
• Front 1-row harrow of cultivator tines S-type 32×10 with duck foot coulter
• Front 1-row harrow of cultivator straight tines 32×10 with straight double coulter

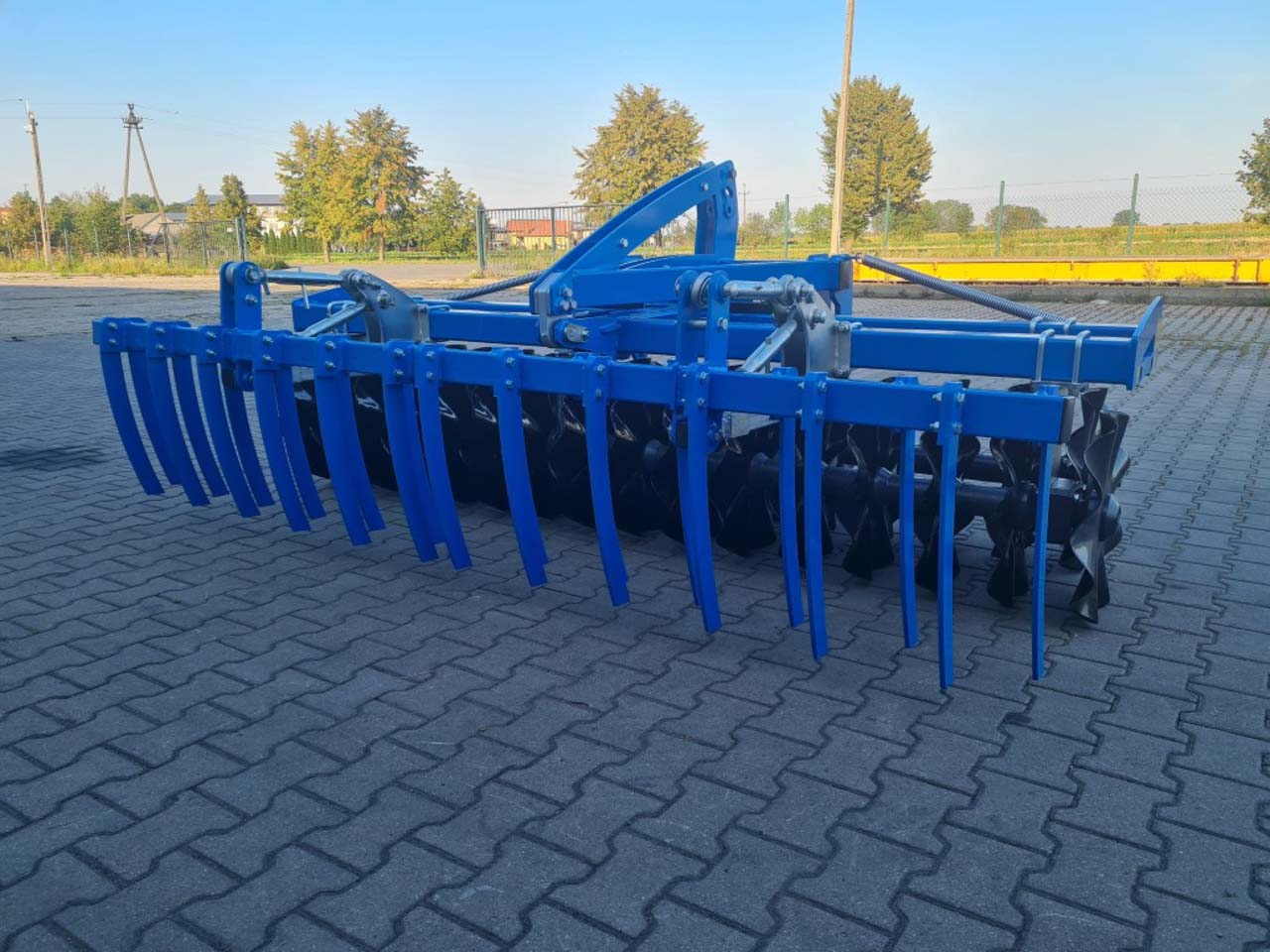

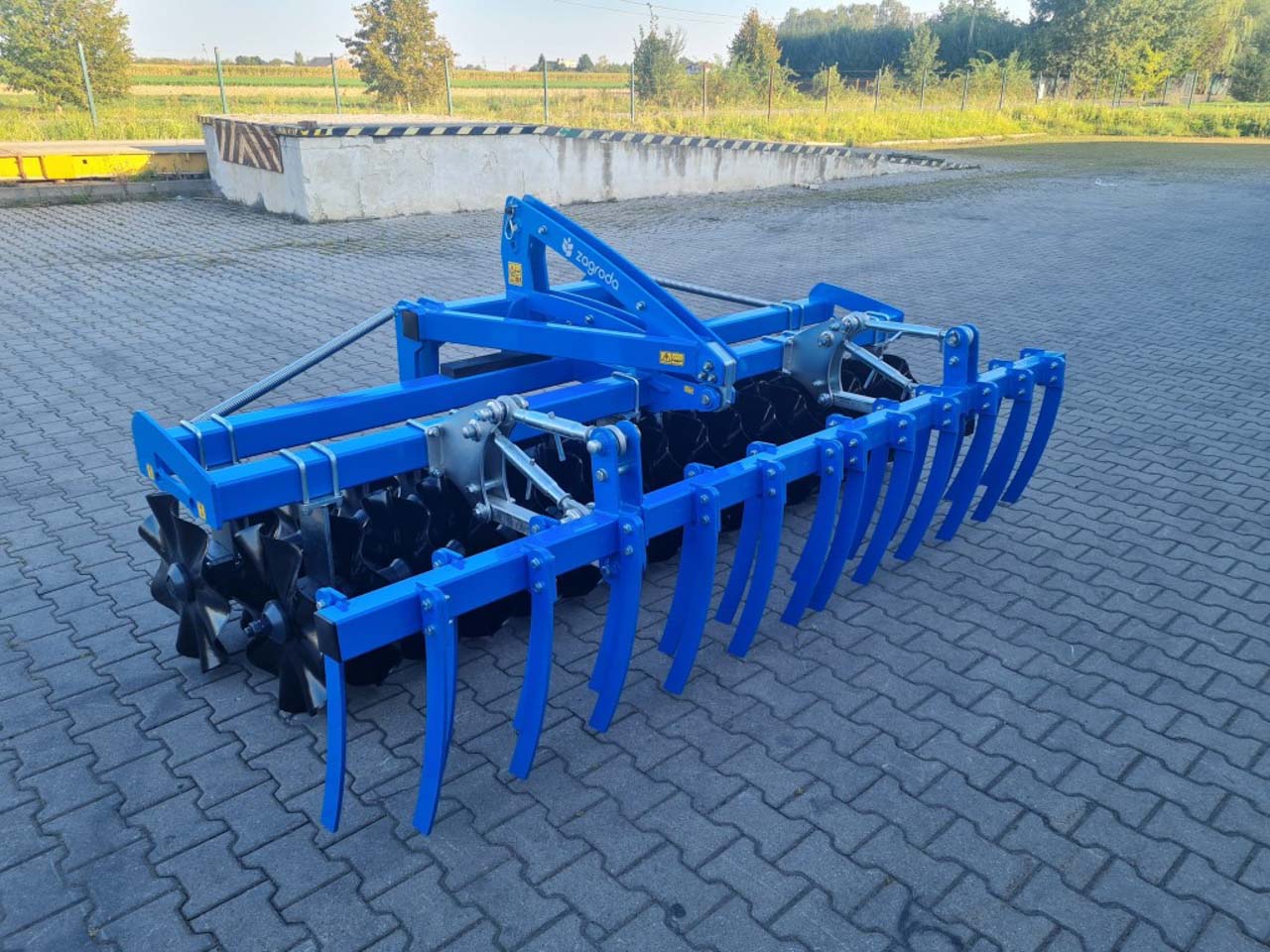

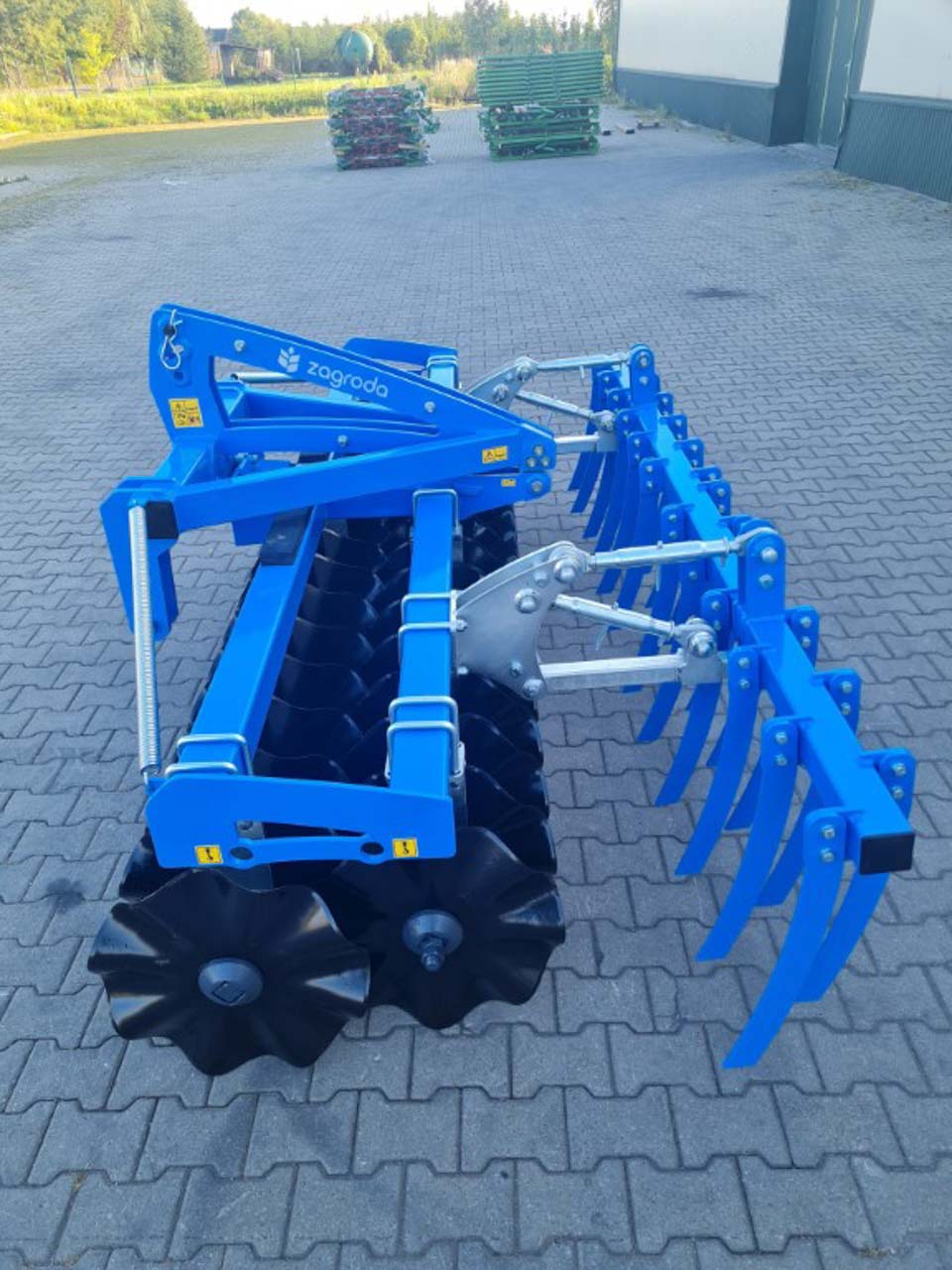

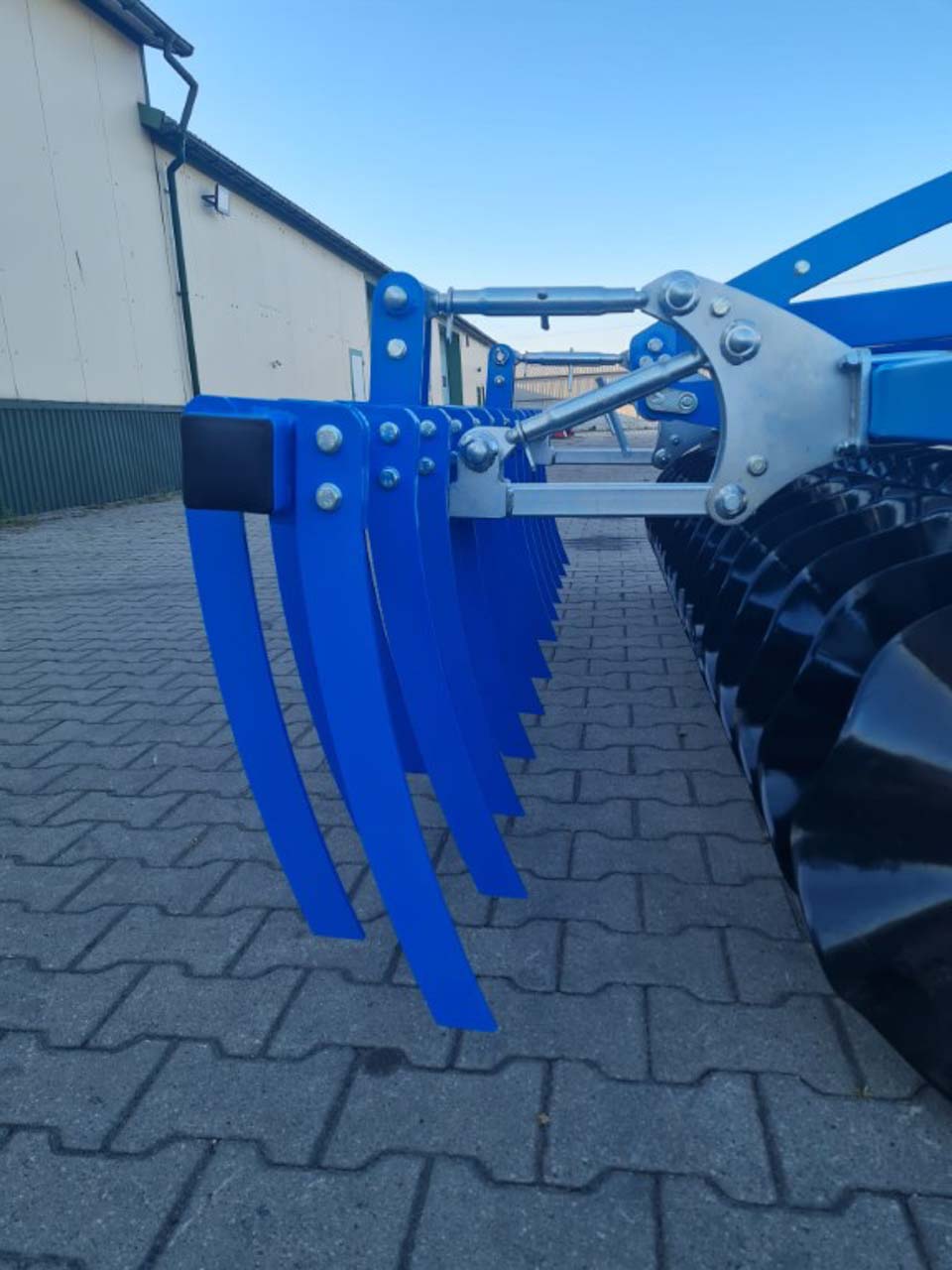

• Front spring levelling board with spring tines 150mm
• Discs Ø 560mm
• Hydraulic adjustment of working depth of levelling board (1 section)
• Crosskill roller Ø 370mm with scrapers (rigid frame version only)
• Tubular roller Ø 370mm (rigid frame version only)

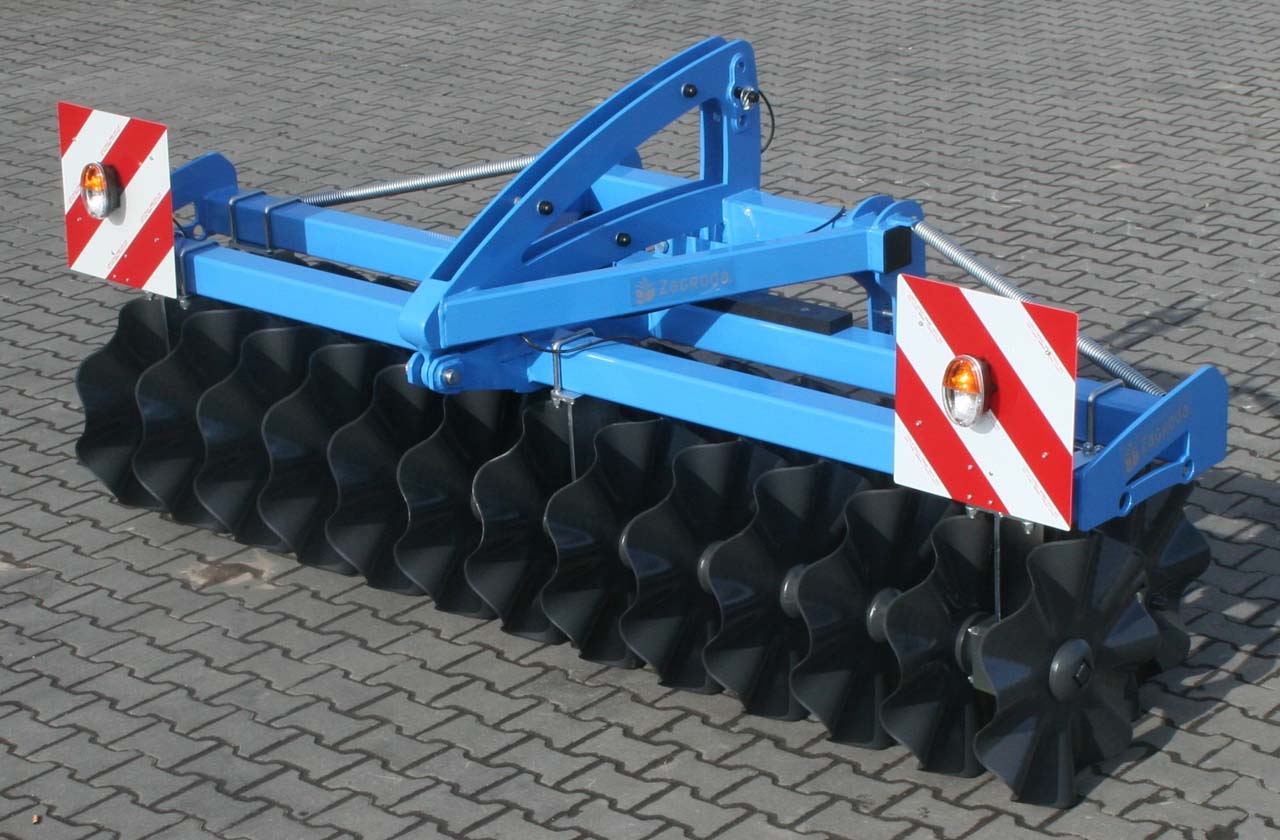

• Warning plates with LED lights
Product number
8500;8501;8502;8503;8504;8505;8506
