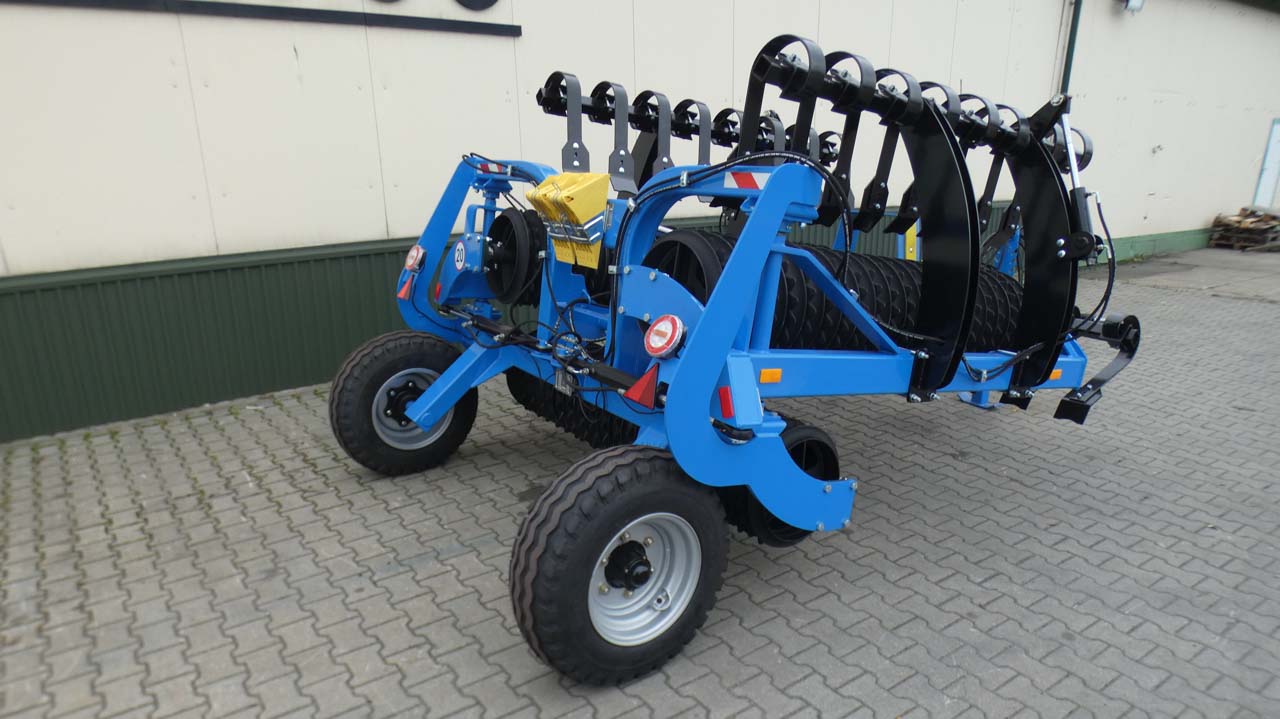

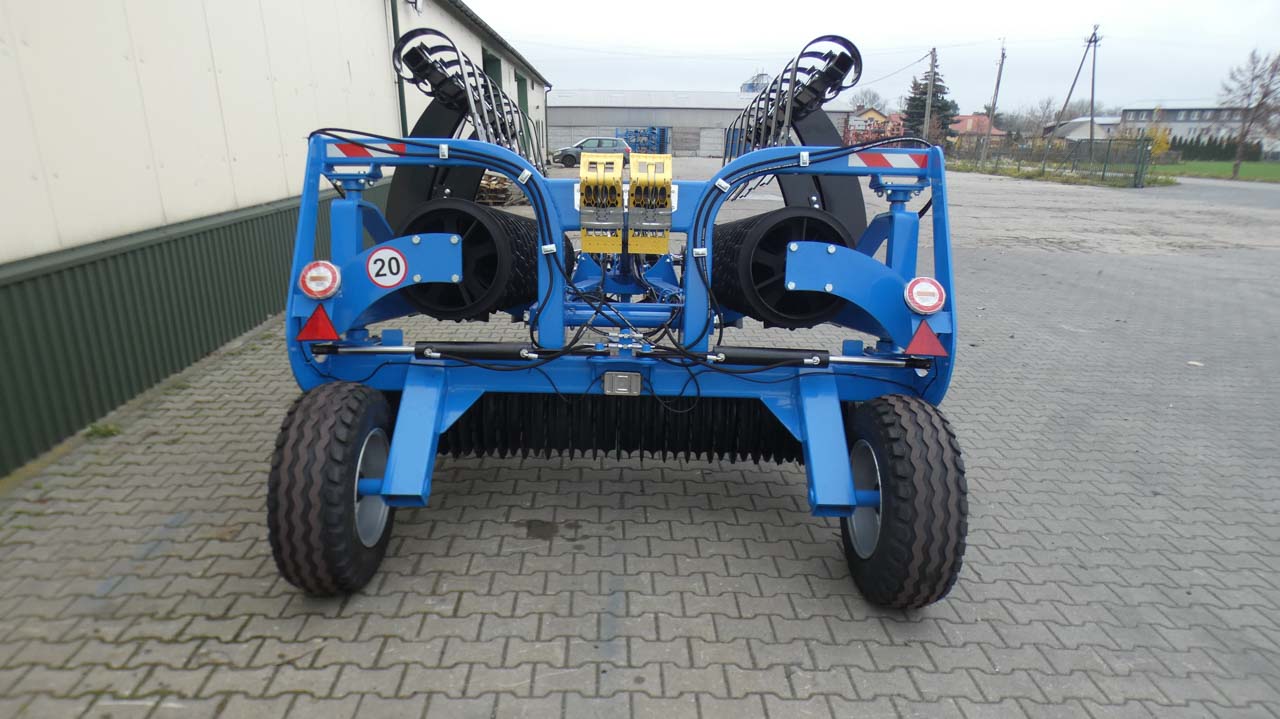

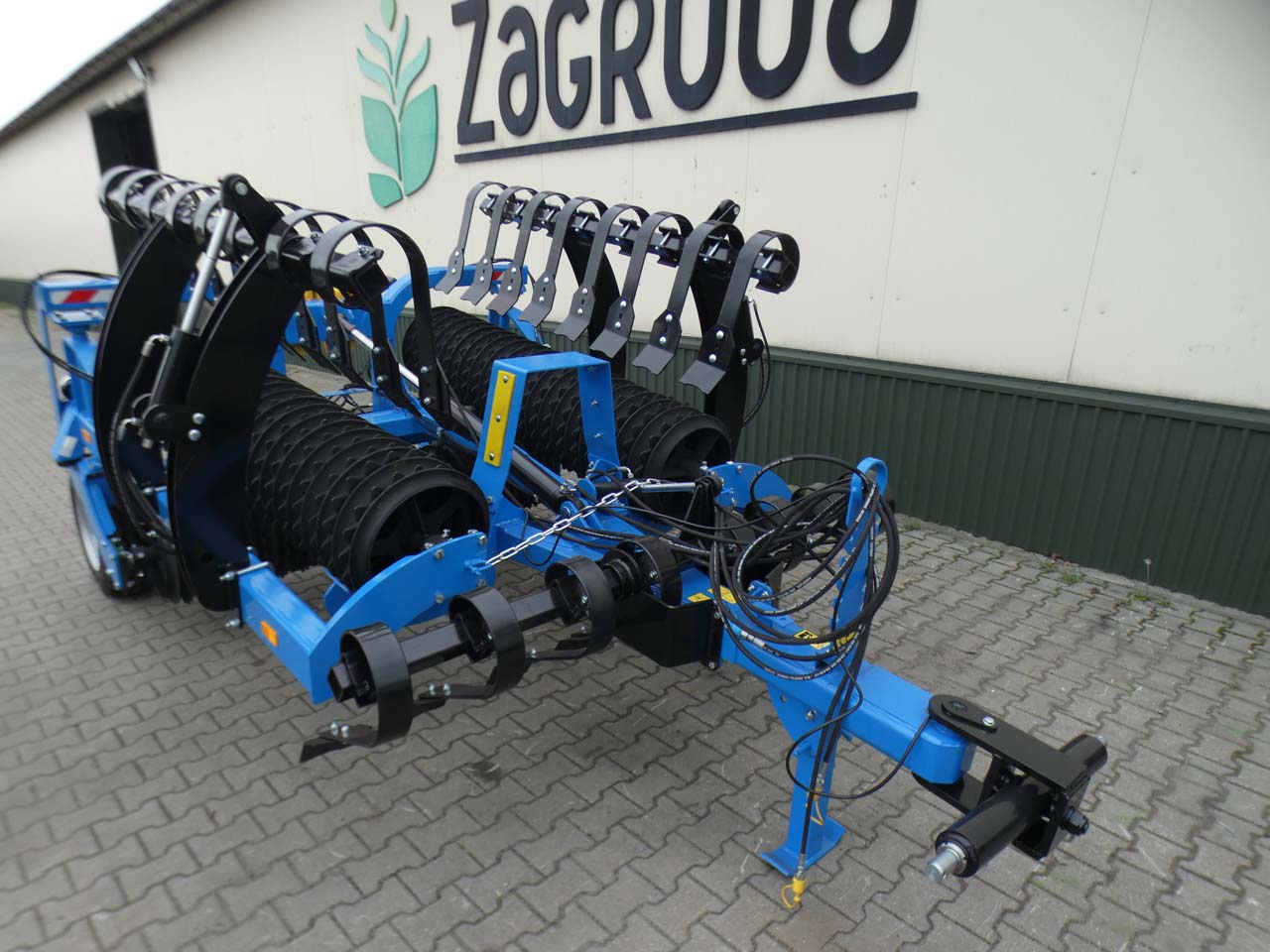

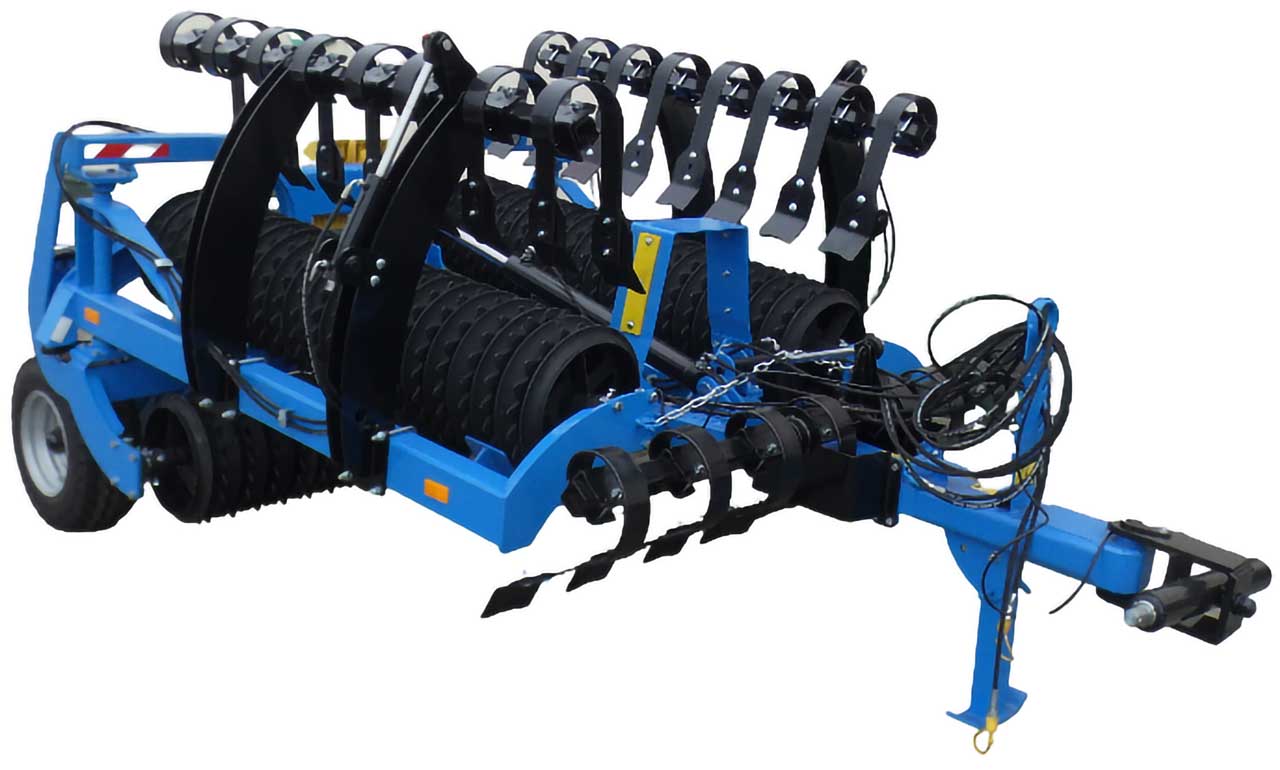

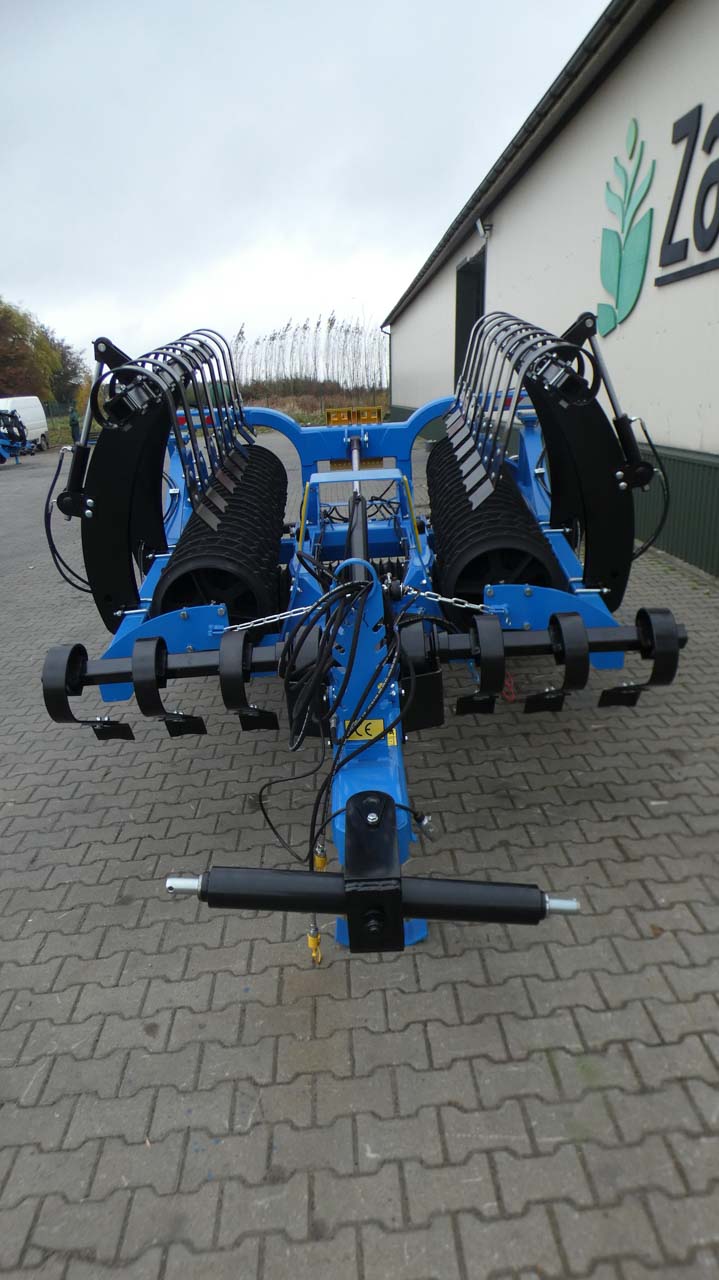

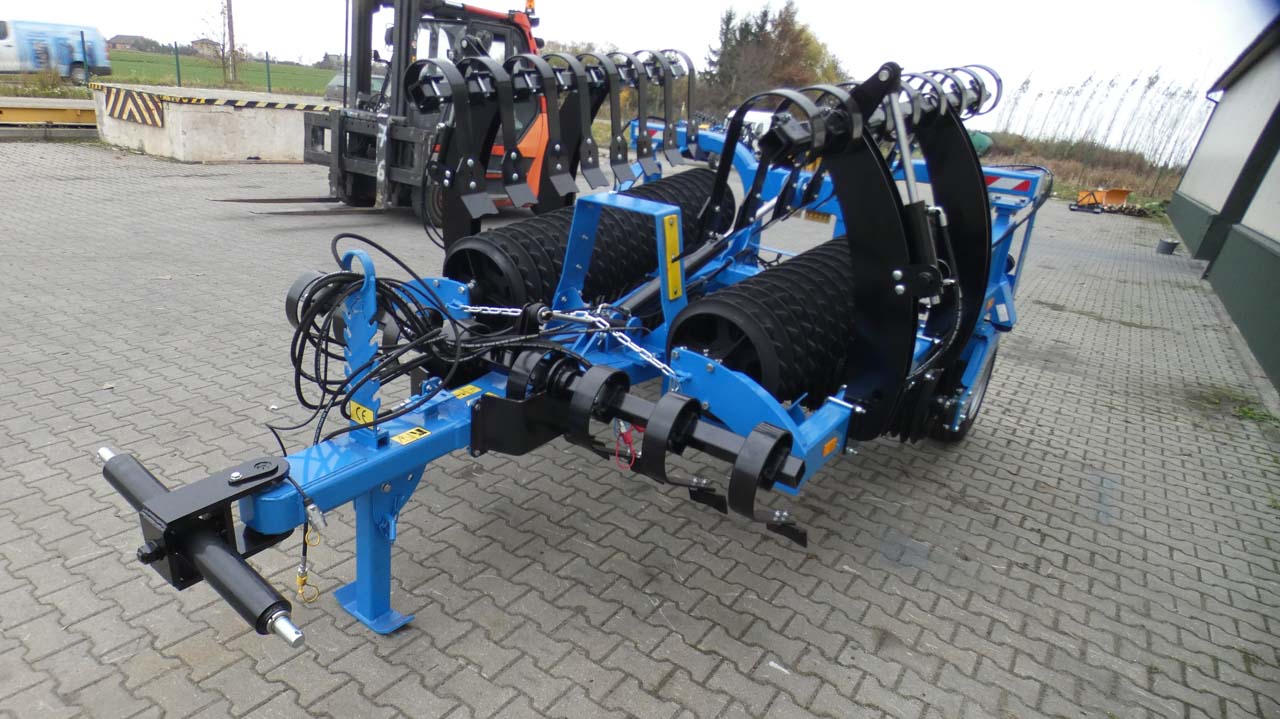

3-section Cambridge roller, hydraulic folding
| REF.NO. | WORKING WIDTH [M] | POWER DEMAND [HP] | WEIGHT [KG] | |
| Cambridge ø 500 mm | 9454FA | 4,5 | 80-110 | 2240 |
| 9455FA | 5,3 | 85-115 | 2490 | |
| 9456FA | 6,3 | 95-120 | 2810 | |
| 9461FA | 7,5 | 120-140 | 3250 | |
| Cambridge ø 530 mm | 9457FA | 4,5 | 80-110 | 2550 |
| 9458FA | 5,3 | 85-115 | 2790 | |
| 9459FA | 6,3 | 95-120 | 3150 | |
| 9462FA | 7,5 | 120-140 | 3670 | |
| Cambridge ø 600 mm | 9458FAO | 5,3 | 95-120 | 4220 |
| 9459FAO | 6,3 | 100-130 | 4520 |
Standard equipment
• Drawbar for top hitching Ø 45 mm, height approx. 70 cm
• Support leg height-adjustable (adjustment +-10cm)
• Wheels 10/75-16.3-12PR
• Transport safety lock (after lowering the working elements into the transport position)
• Sections secured by means of swivel-mounted bearing sets
• Ring axle Ø 60 mm for cast elements ø 500 and ø 530 mm (for cast elements ø 600 mm axle ø 65 mm)
• Transport width less than 3.0 m
Optional equipment
• Hydraulic leveling spring tine harrow
• Stiffening bar for the leveling spring tine harrow
• 400/60 15.5 tires
• Pneumatic brake
• Hydraulic brake
• Stone box
• LED lights
Product number
9454FA;9455FA;9456FA;9457FA;9458FA;9459FA;9461FA;9462FA;9458FAO;9459FAO
Description
| REF.NO. | WORKING WIDTH [M] | POWER DEMAND [HP] | WEIGHT [KG] | |
| Cambridge ø 500 mm | 9454FA | 4,5 | 80-110 | 2240 |
| 9455FA | 5,3 | 85-115 | 2490 | |
| 9456FA | 6,3 | 95-120 | 2810 | |
| 9461FA | 7,5 | 120-140 | 3250 | |
| Cambridge ø 530 mm | 9457FA | 4,5 | 80-110 | 2550 |
| 9458FA | 5,3 | 85-115 | 2790 | |
| 9459FA | 6,3 | 95-120 | 3150 | |
| 9462FA | 7,5 | 120-140 | 3670 | |
| Cambridge ø 600 mm | 9458FAO | 5,3 | 95-120 | 4220 |
| 9459FAO | 6,3 | 100-130 | 4520 |
