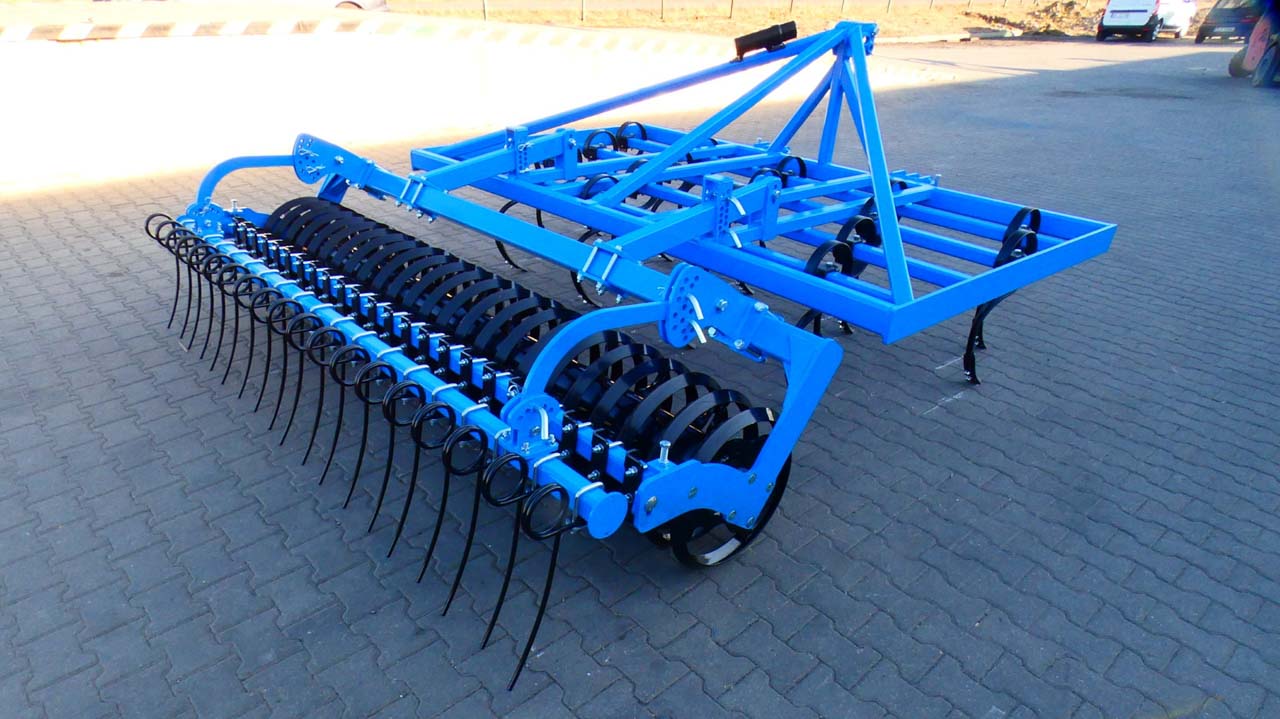

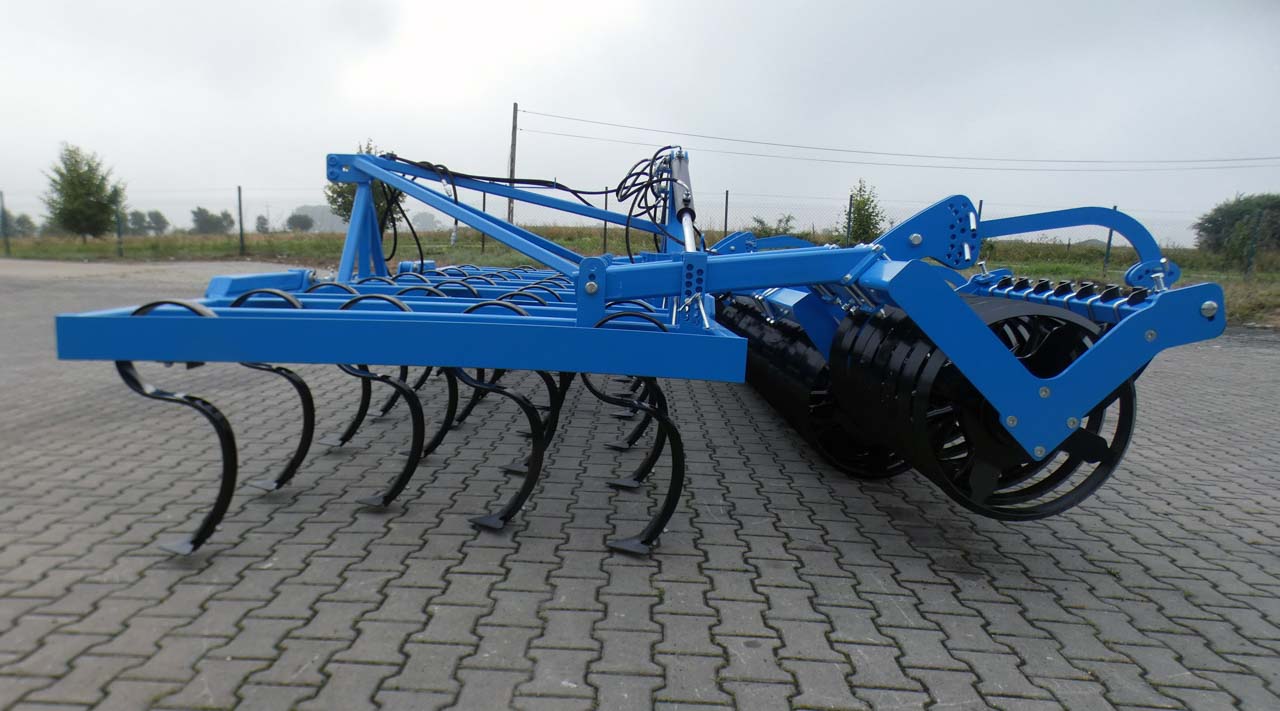

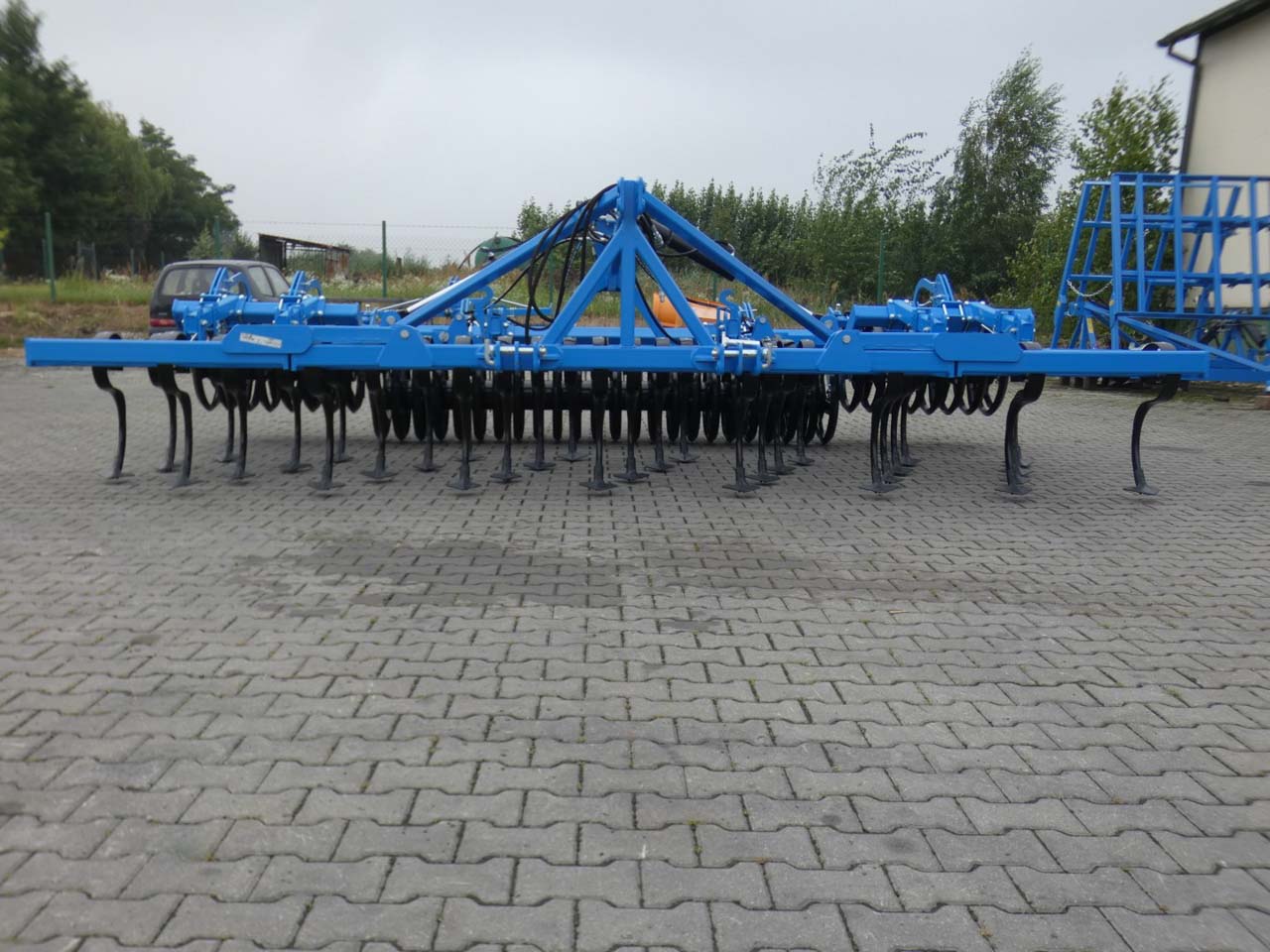

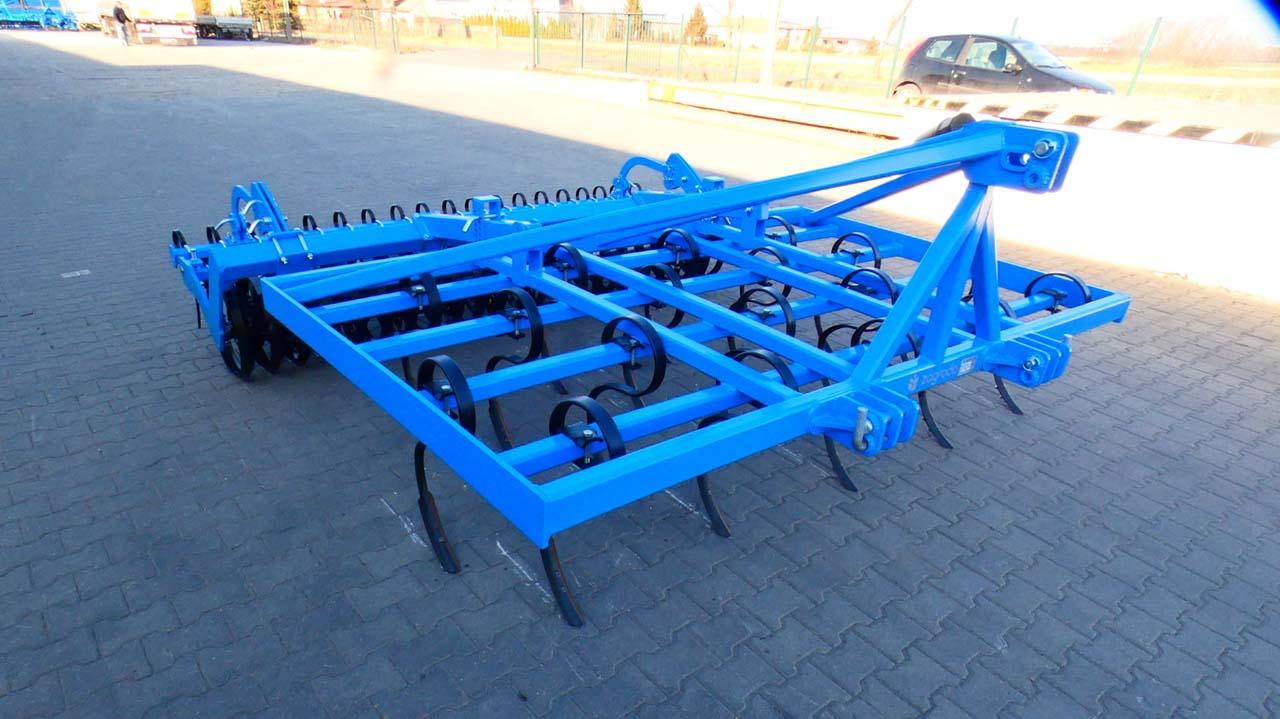

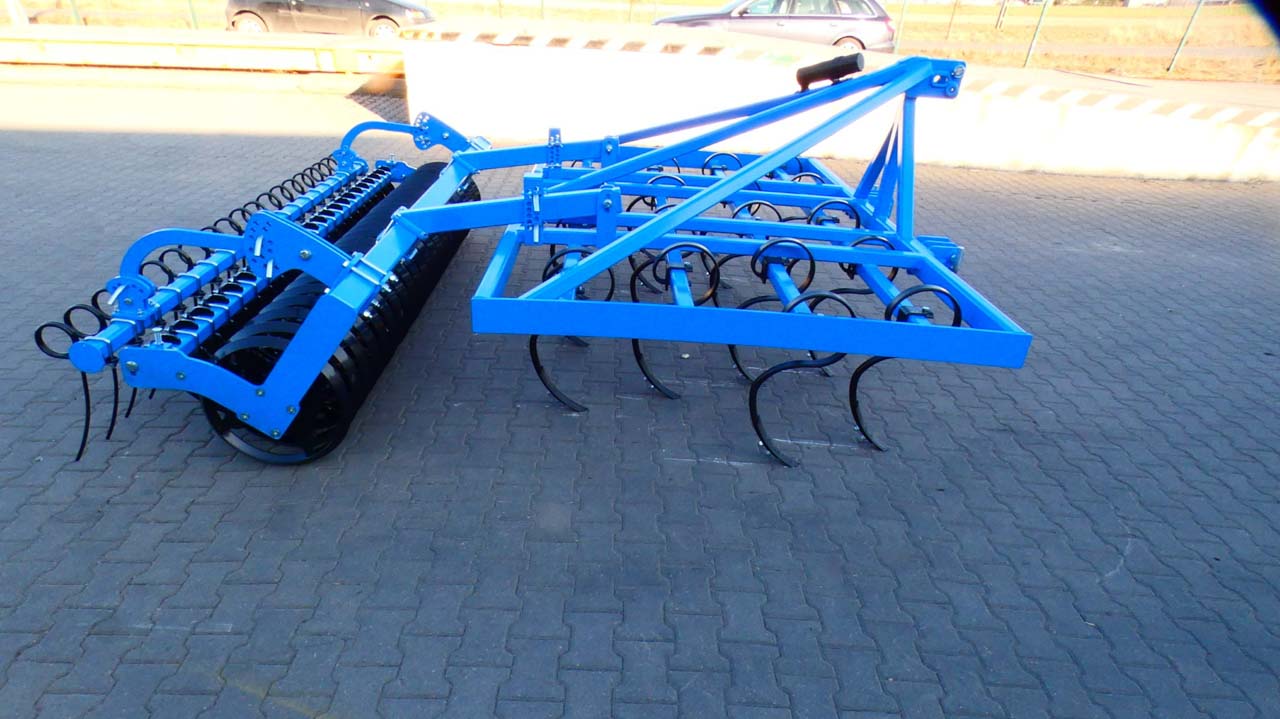

Universal 4 row cultivator

Standard equipment

•  3-point linkage cat. II with hitch cross shaft for width 3,0m and 4,0m
•  3-point linkage cat. III with hitch cross shaft for width 5,0m and 6,0m
•  4 rows of cultivator S type tines 45 x 12 with standard double coulter

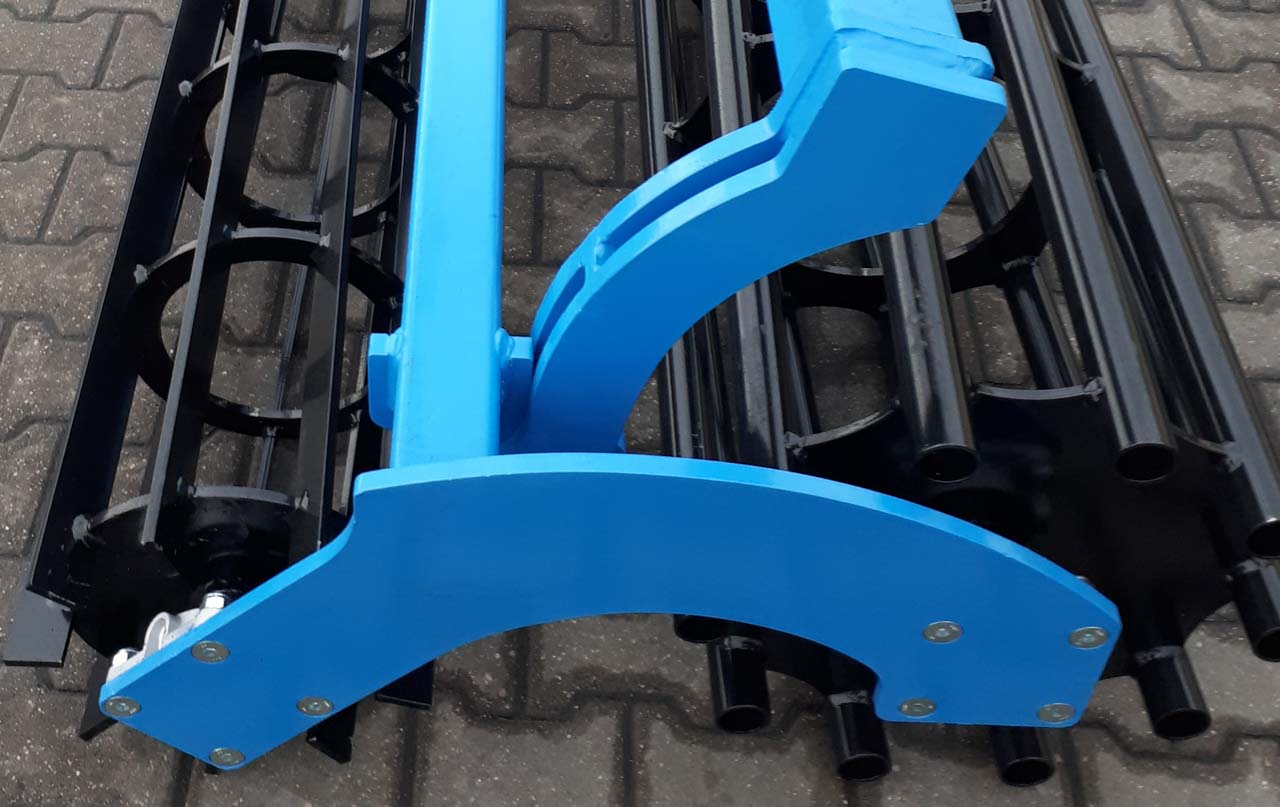

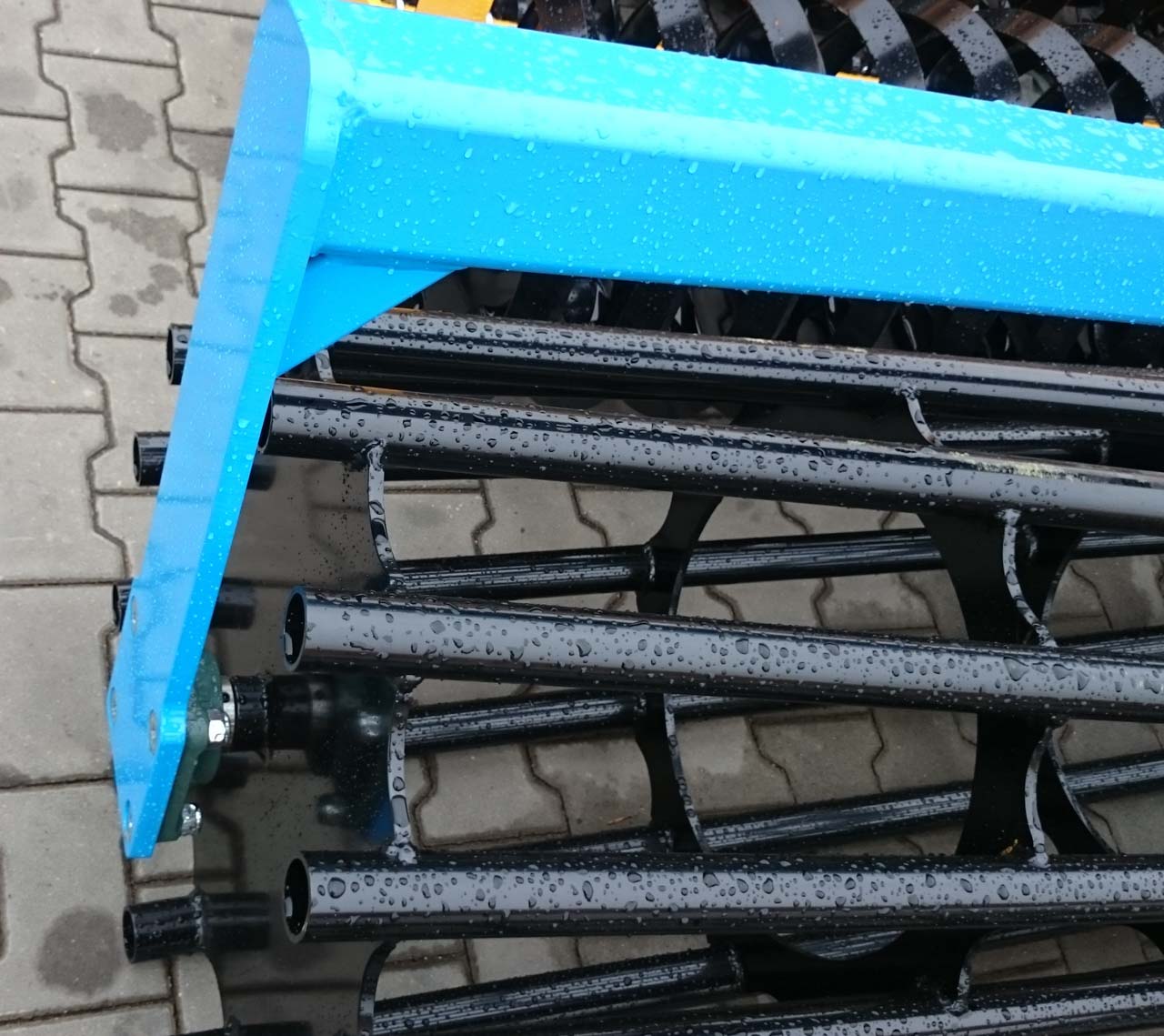

•  Tubular roller Ø 540mm with mechanical working depth adjustment

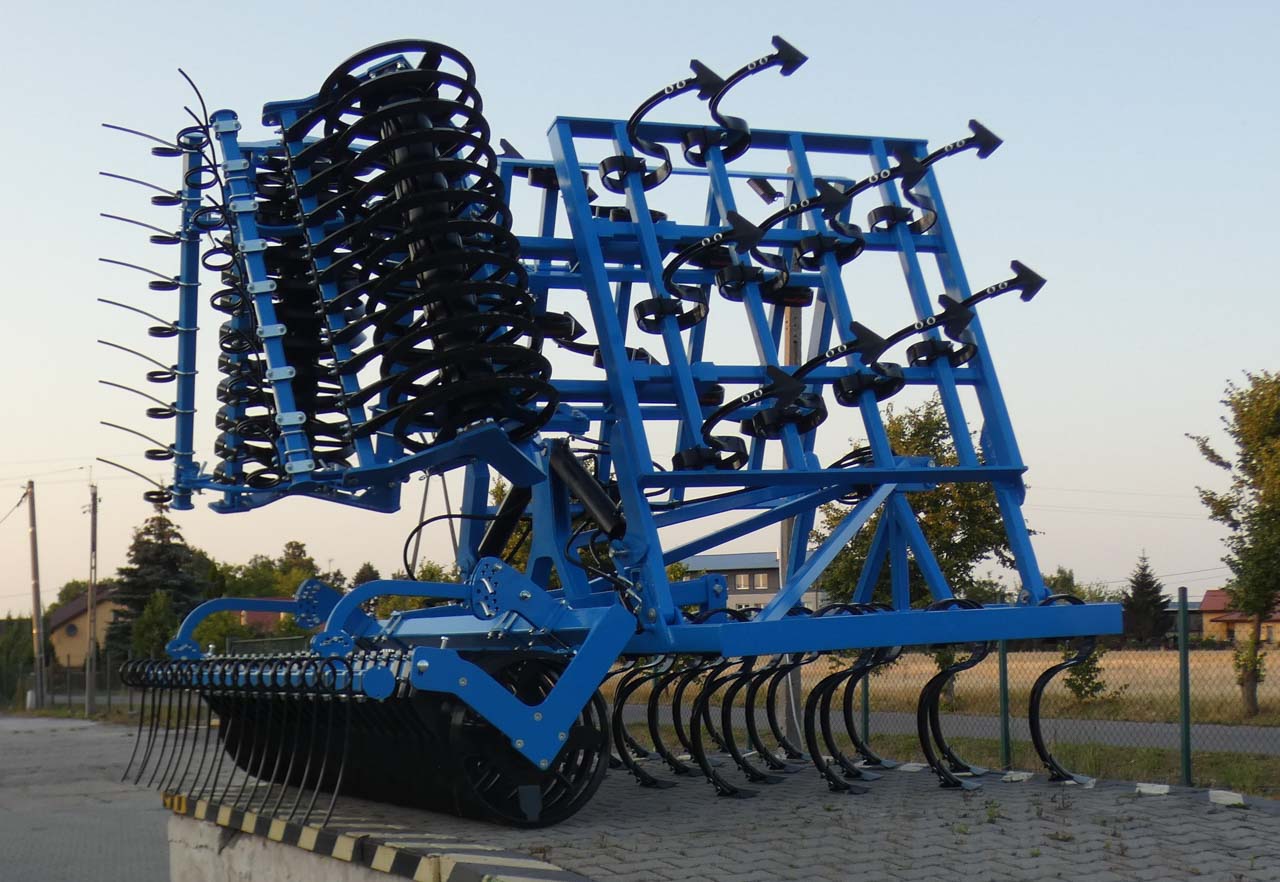

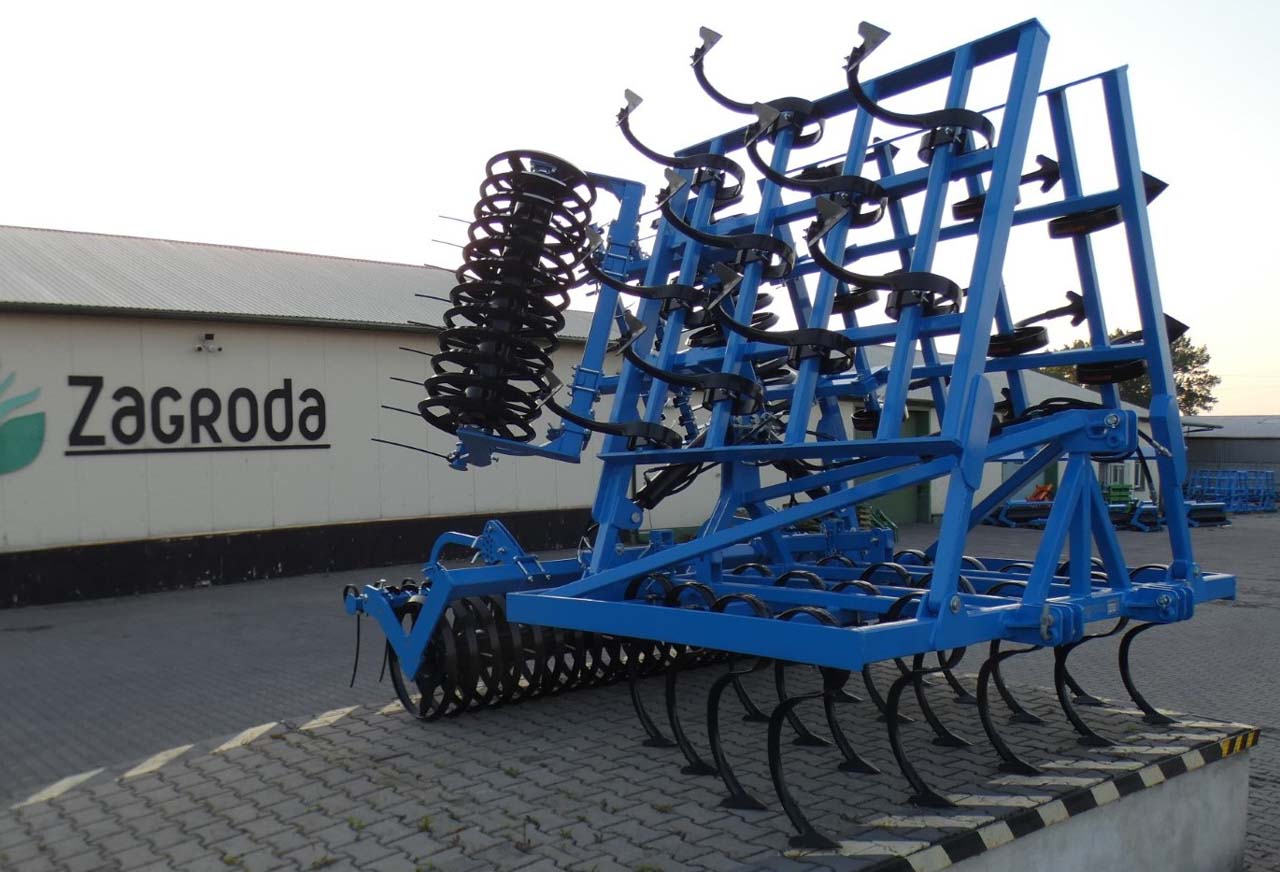

•  Hydraulic folding to transport position for width from 4,0m (approx. 90°)
•  Hydraulic transport safety lock
•  Working depth up to 12cm
•  Transport width up to 3,0m

Optional equipment

•   Cultivator tines 60×12 with straight double coulter
•   Cultivator tines 70×12 with straight double coulter
•   Duck foot coulter
•   Tubular roller Ø 600 mm

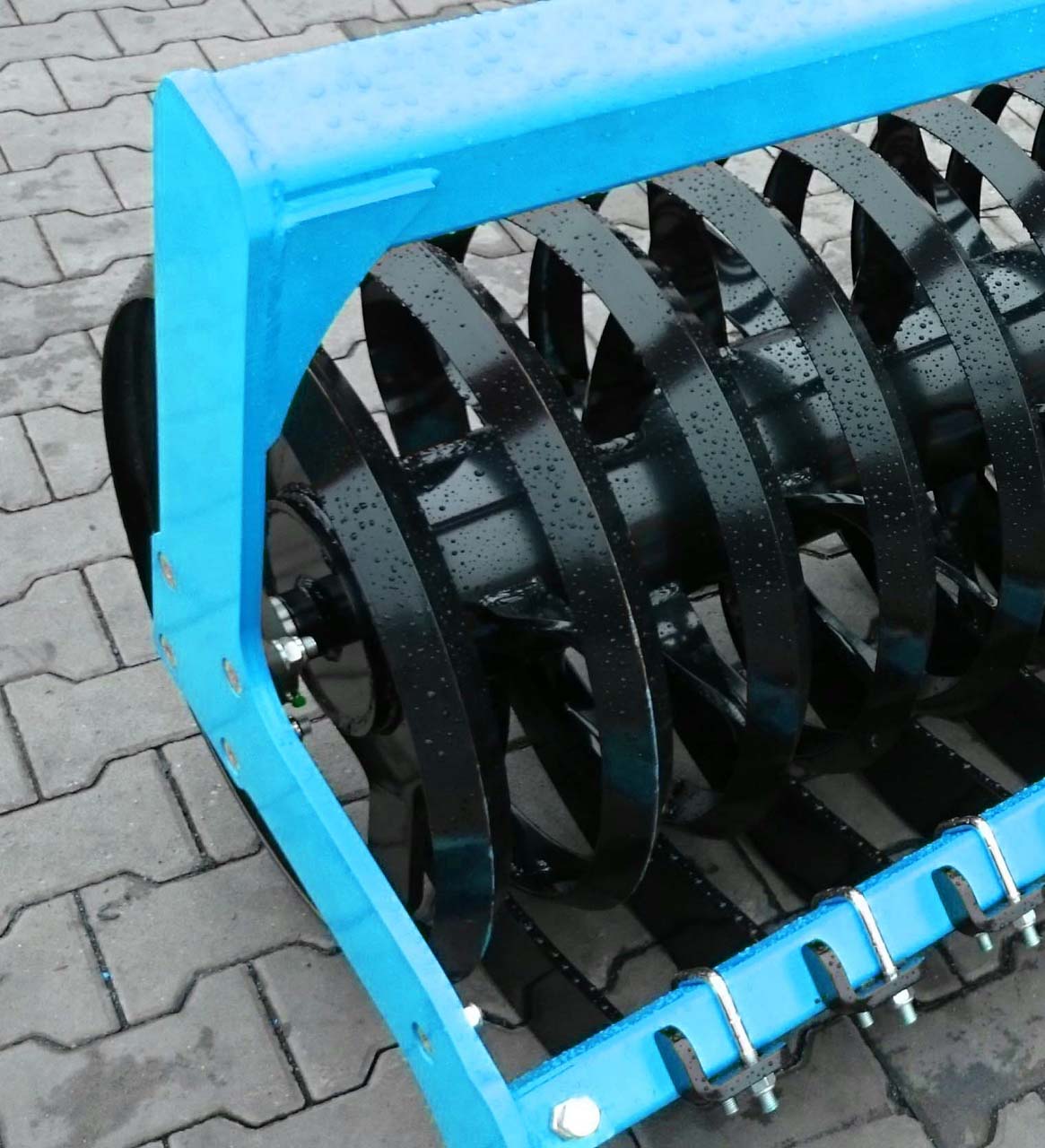

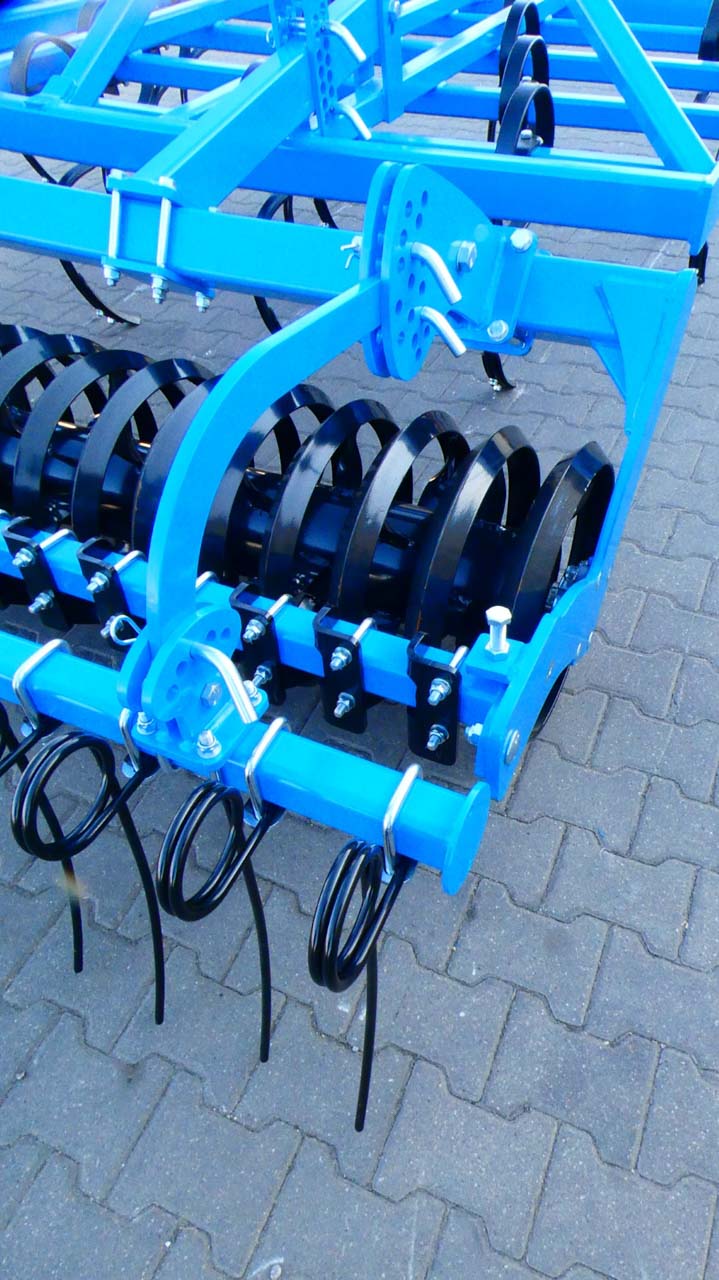

•   V ring roller ø 600mm with wscrapers
•   Packer roller ø 500mm

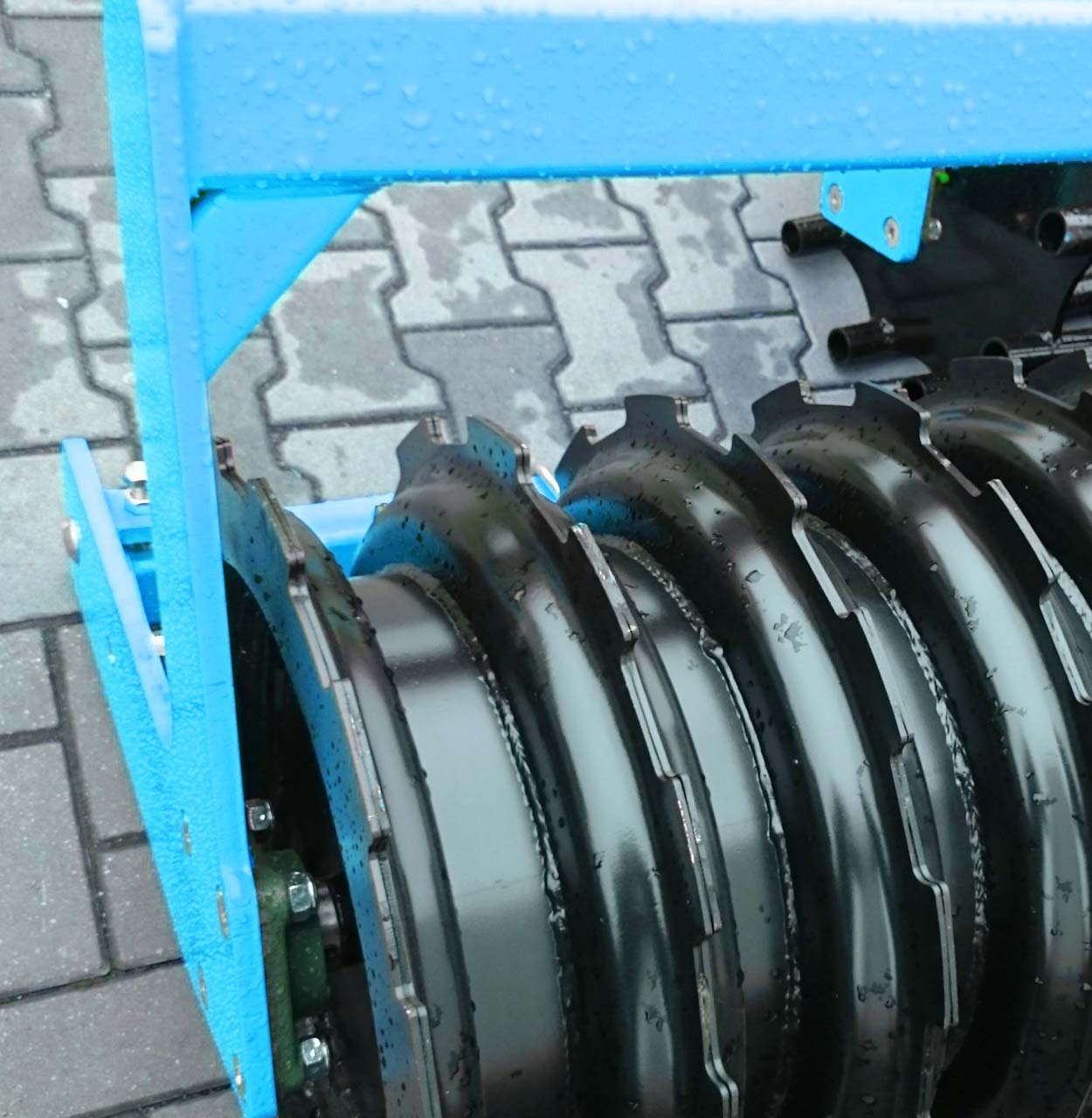

•   Pack ring roller ø 600mm

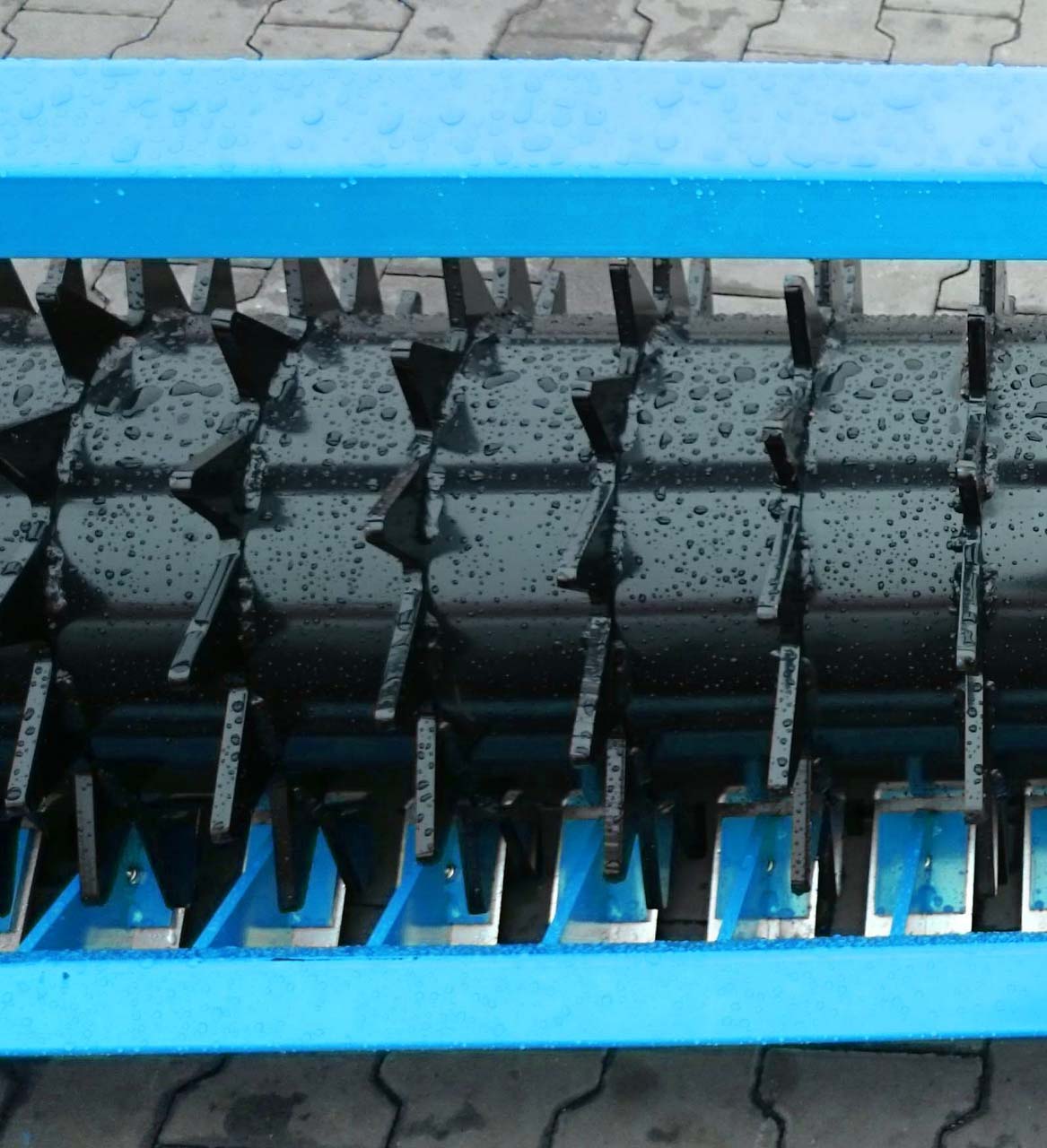

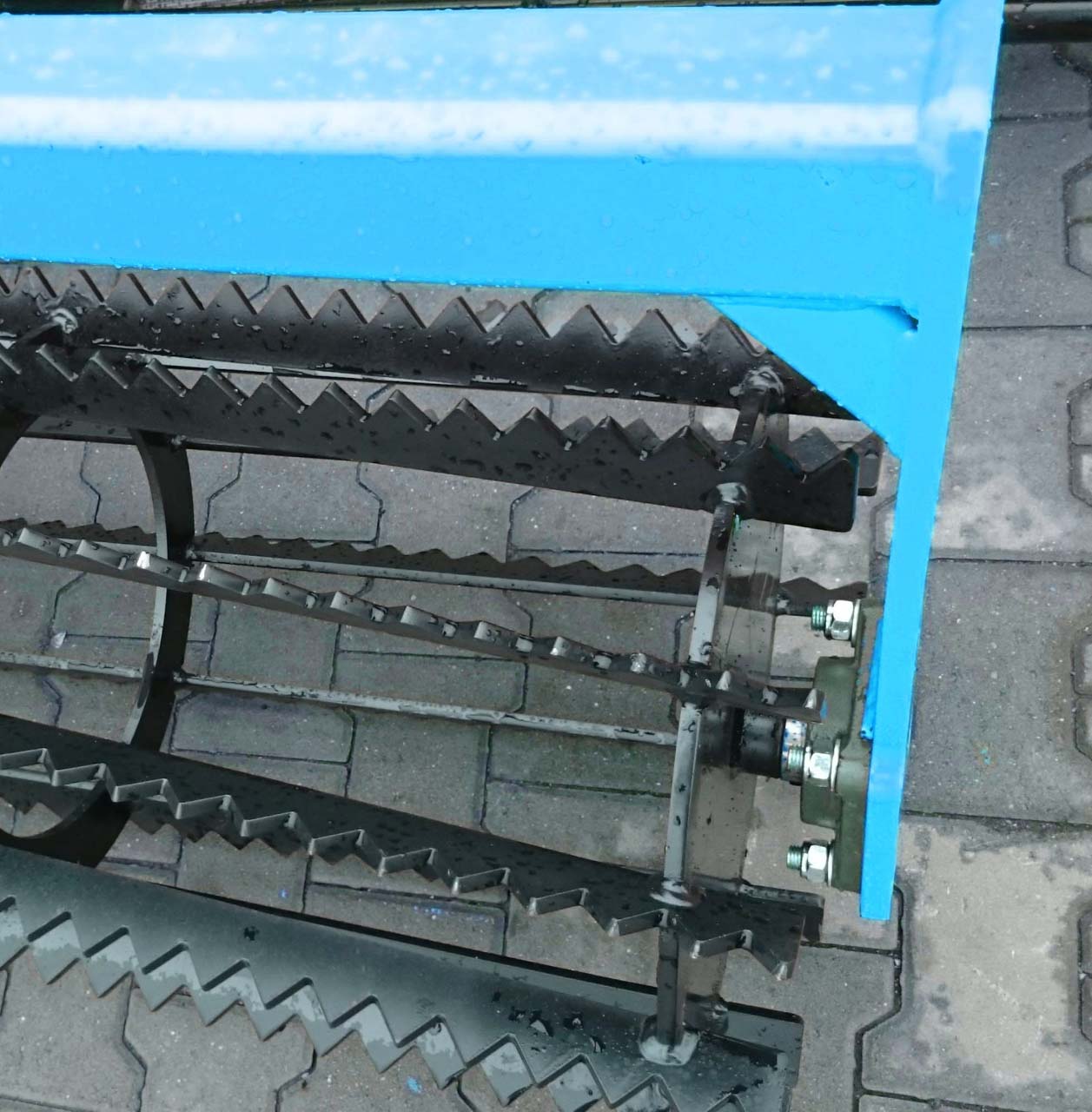

•   Flat bar roller ø 500mm
•   Flat bar roller ø 600mm

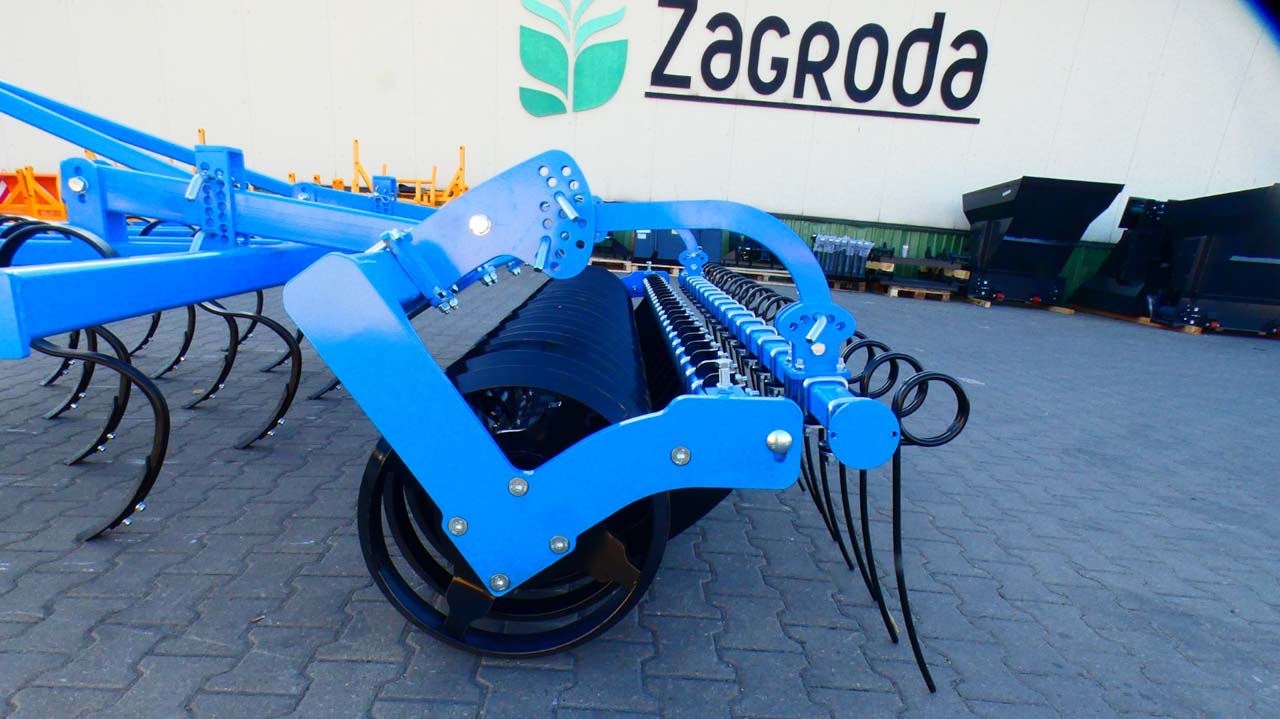

•   Row of harrow springs behind of the roller
•   Warning plates with LED lights

Product number
8485TS;8486TS;8487TS;8488TS
