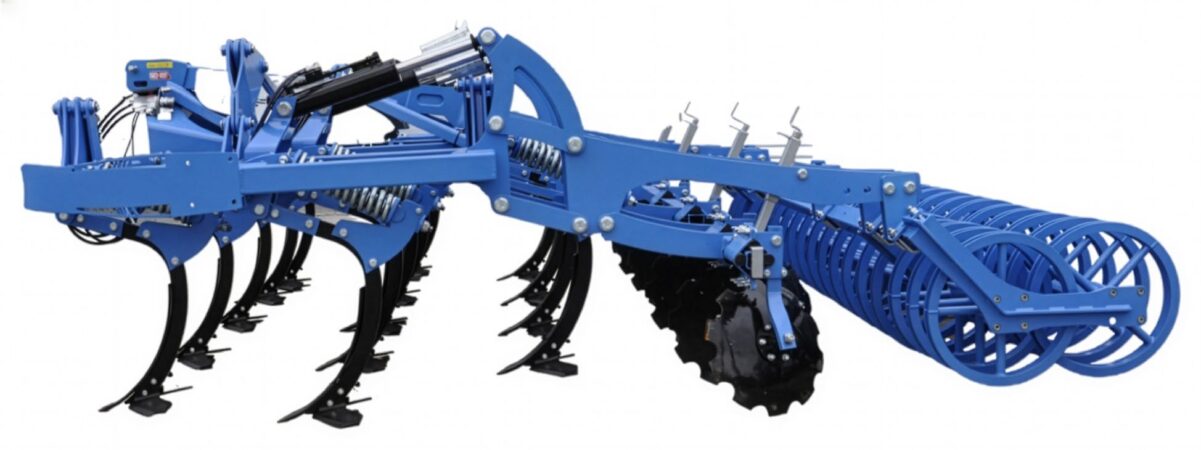

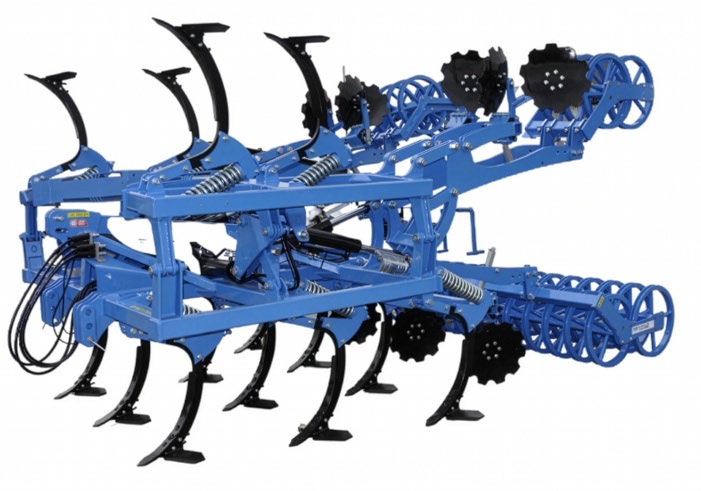

Stubble 3-beam cultivator
| Ref.No | Working width [m] | Number of tines [pcs.] | Power demand [HP] | Weight [kg] |
| 8305ON | 3,0 m | 10 | 150 | 1820 |
| 8306ON | 4,2m | 14 | 200 | 3350 |
| 8307ON | 4,8 m | 16 | 240 | 3850 |
| 8307ON | 5,4 m | 18 | 290 | 4170 |
| 8308ON | 6,3 m | 21 | 400 | 6650 |
Standard equipment
• 3-point linkage, cat. II and III
• Working depth up to 35 cm
• Ground clearance under the frame 92 cm

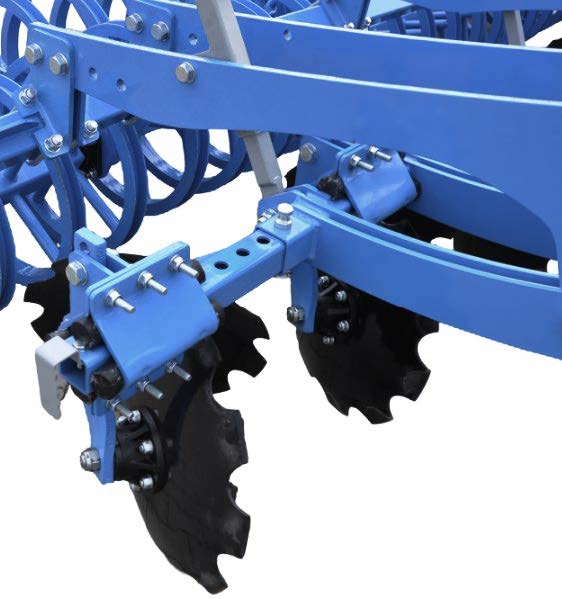

• Hollow discs Ø 460 mm
• Tubular roller 500 mm

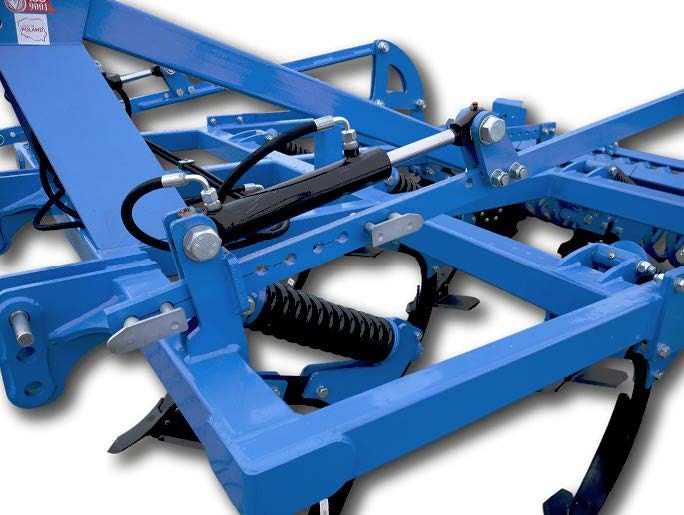

• Hydraulic working depth adjustment
Optional equipment
• V-ring roller 600 mm with scrapers
• Packer roller Ø 500mm
• C-ring roller Ø 600mm with scrapers
• Fusion roller Ø 600mm
• Single-row drag harrow
• Hydraulic safety mechanism
• LED-lights
