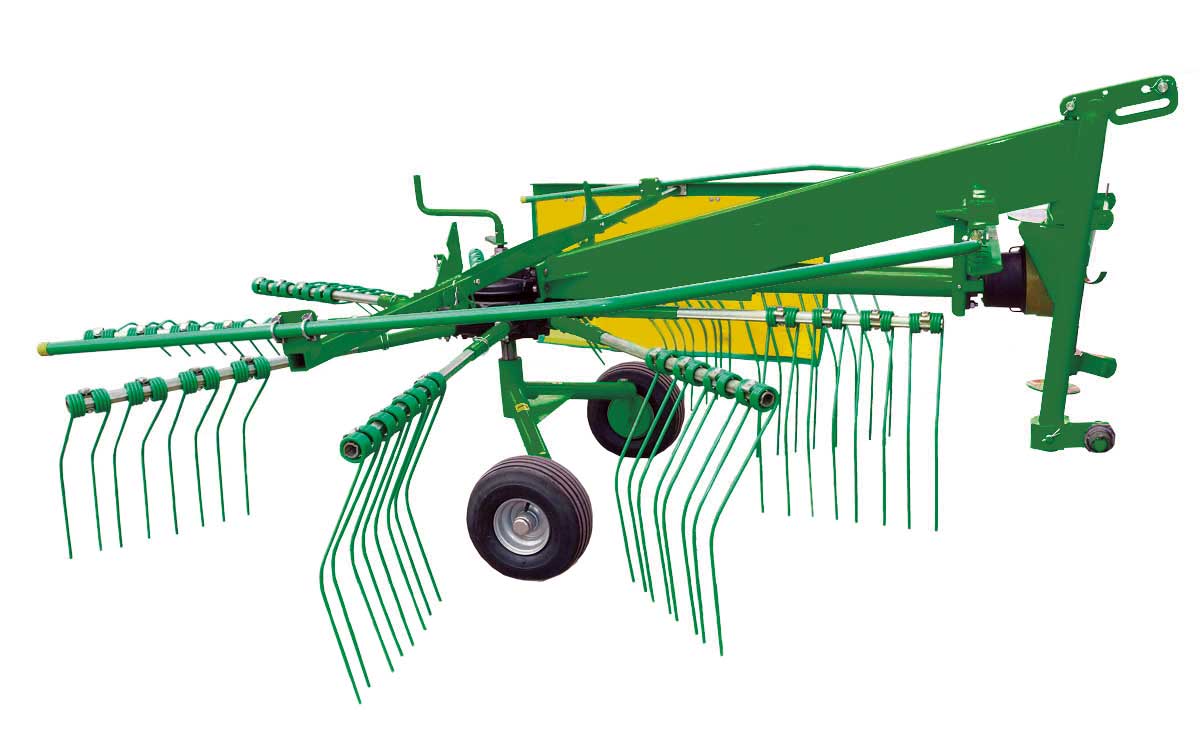

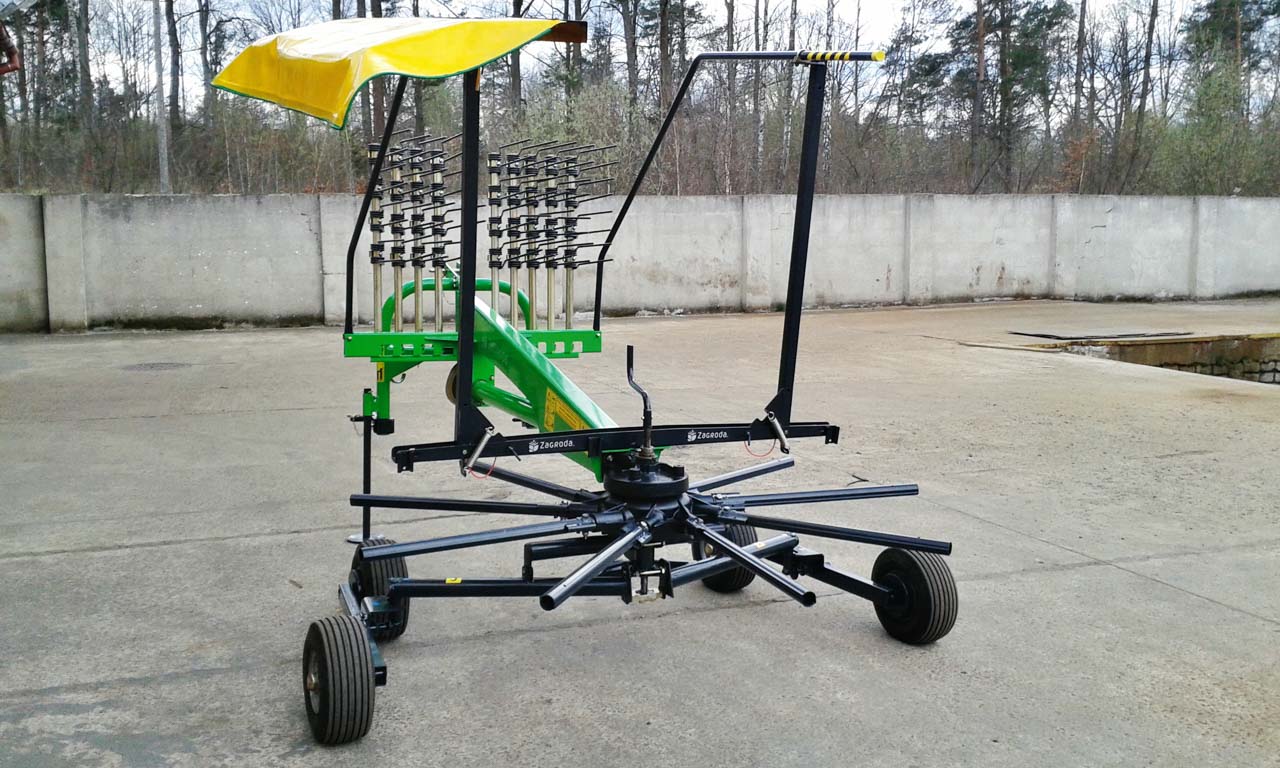

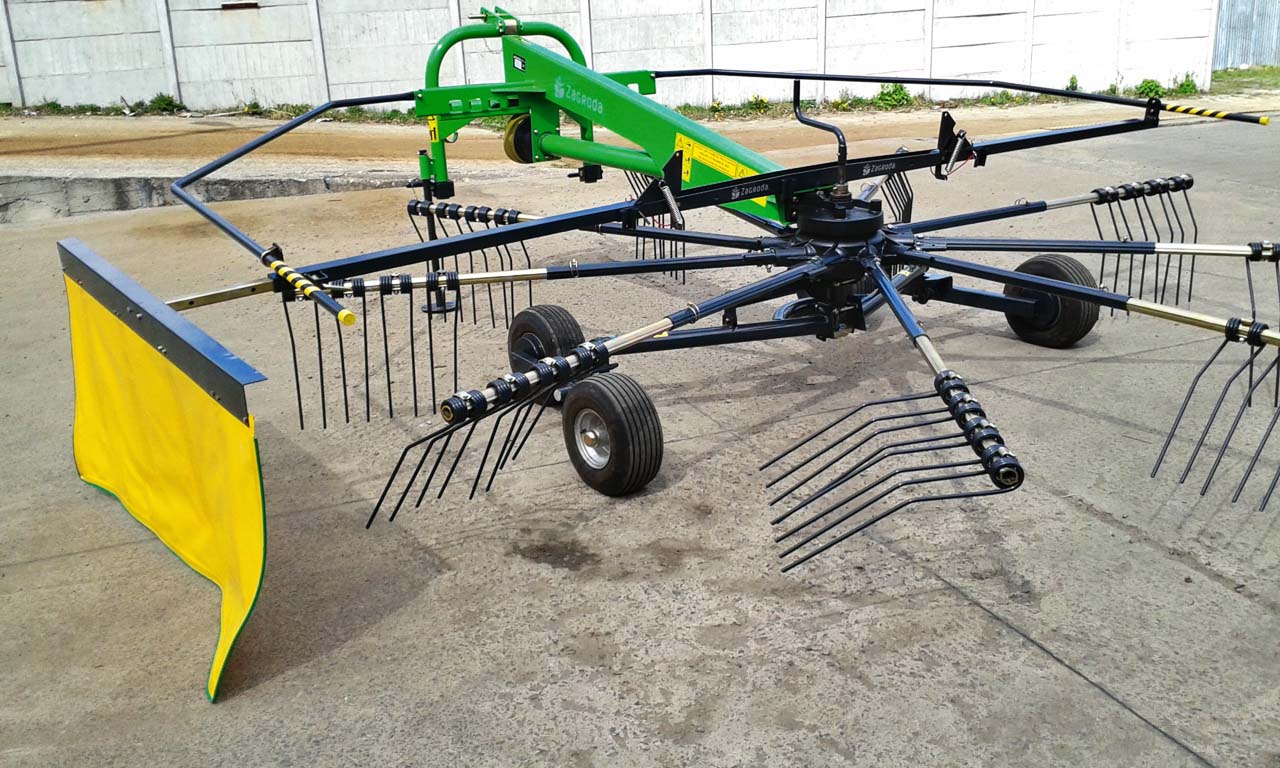

Single rotor rake
| Ref.No. | Working width [m] | Transport width [m] | Rotor diameter [m] | Number of arms [pcs.] | Power demand [HP] | No. of wheels | Weight [kg] |
|---|---|---|---|---|---|---|---|
| 1347 | 3,2 | 1,60 | 2,7 | 9 | 20 | 2 | 340 |
| 1345 | 3,5 | 1,60 | 3,0 | 9 | 20 | 4 | 390 |
| 1348 | 3,7 | 1,63 | 3,2 | 9 | 20 | 4 | 405 |
| 1352 | 4,2 | 1,90 | 3,6 | 9 | 20 | 4 | 425 |
| 1346 | 6,5 | 2,80 | 2×2,9 | 2×11 | 80 | 2×4 | 1200 |
Standard equipment
- 3-point linkage cat. I and II for working width 3,2m and 3,7m; 3-point linkage cat. II for working width 4,2m and 6,5m – floating
- Oil filled gearbox
- Mechanical teeth height adjustment on the crank
- PTO shaft with overload clutch
- Arms with 4 double tines with working width 600mm
- 1 rotor for Ref. No. 1347, 1345, 1348, 1352
- 2 rotors for Ref. No. 1346
Optional equipment

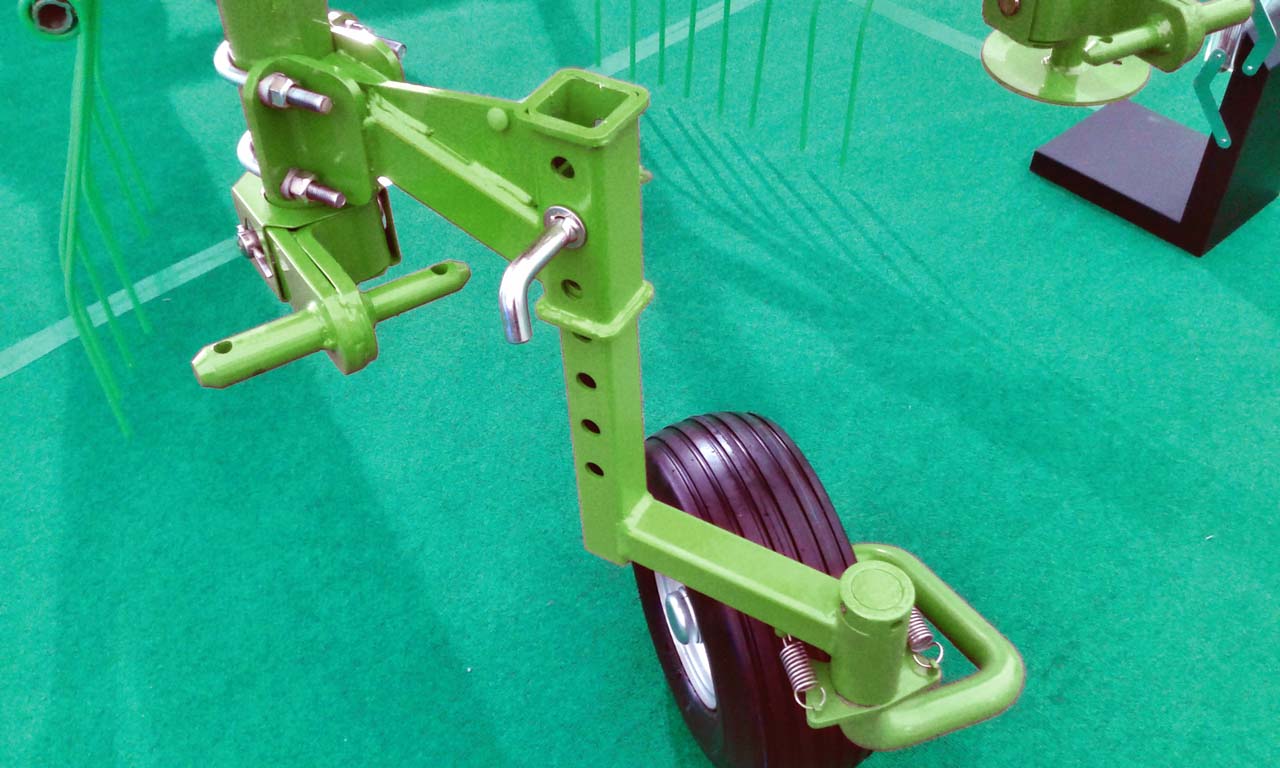

- Wheel for a single rotor rake
Product number
1347;1345;1348;1352;1346
