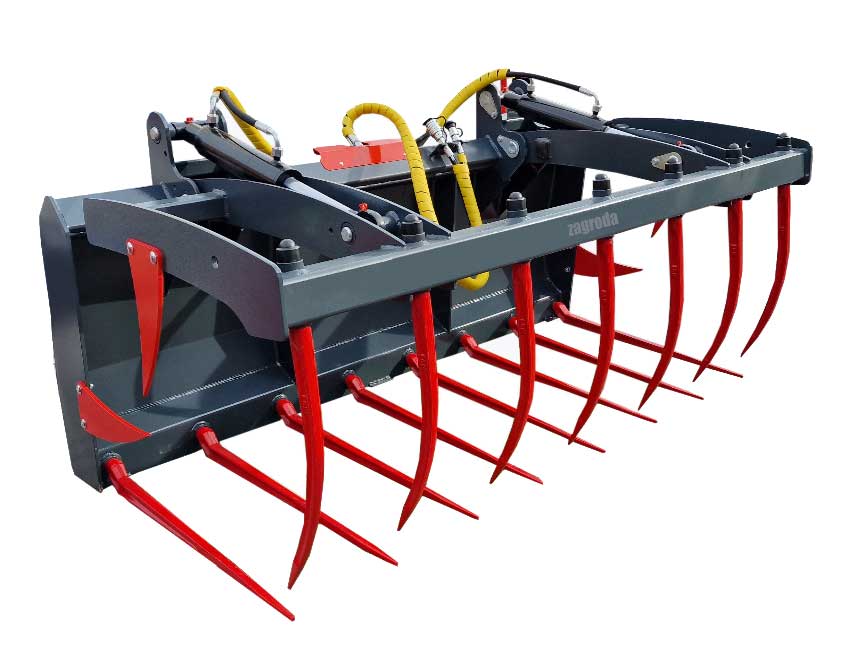

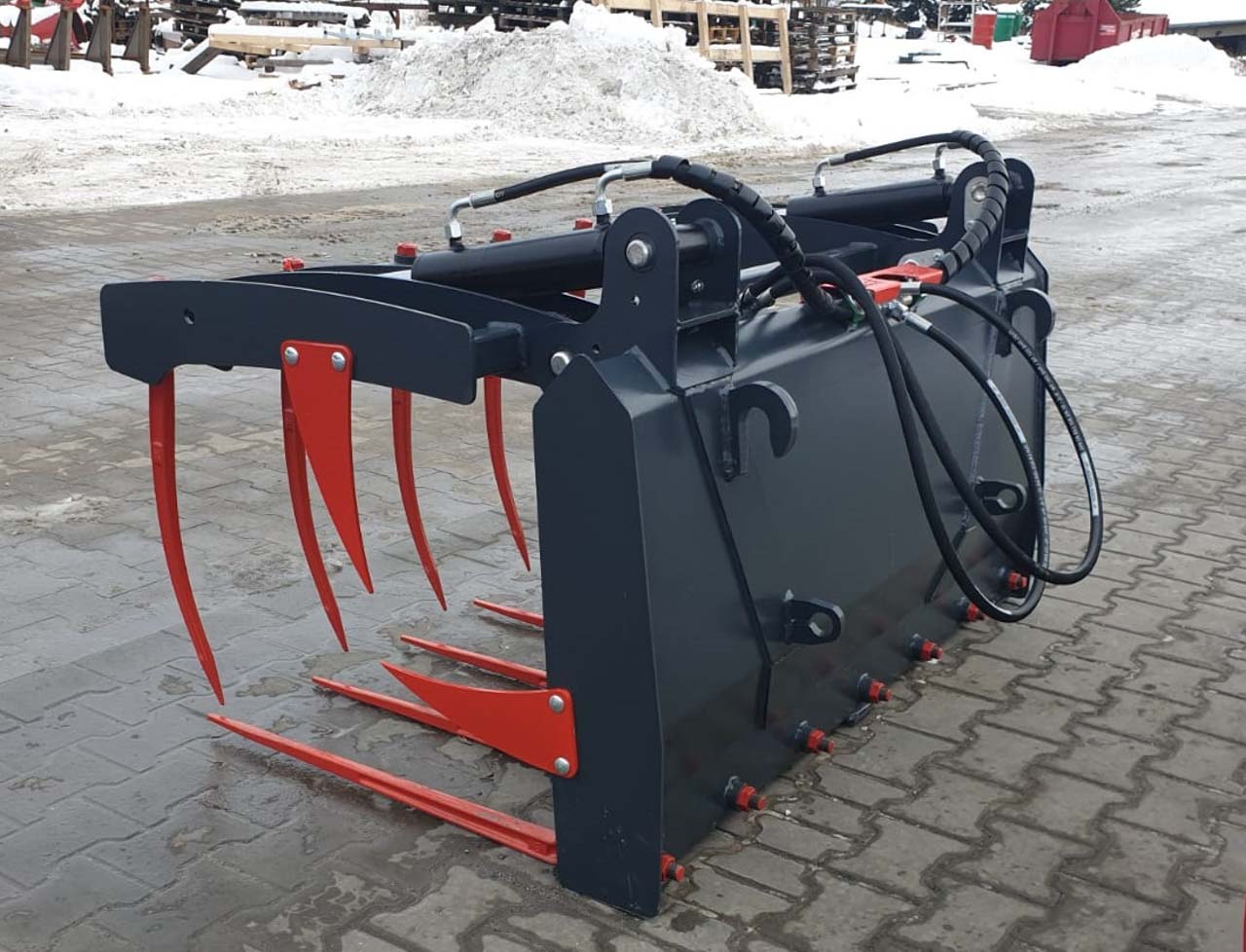

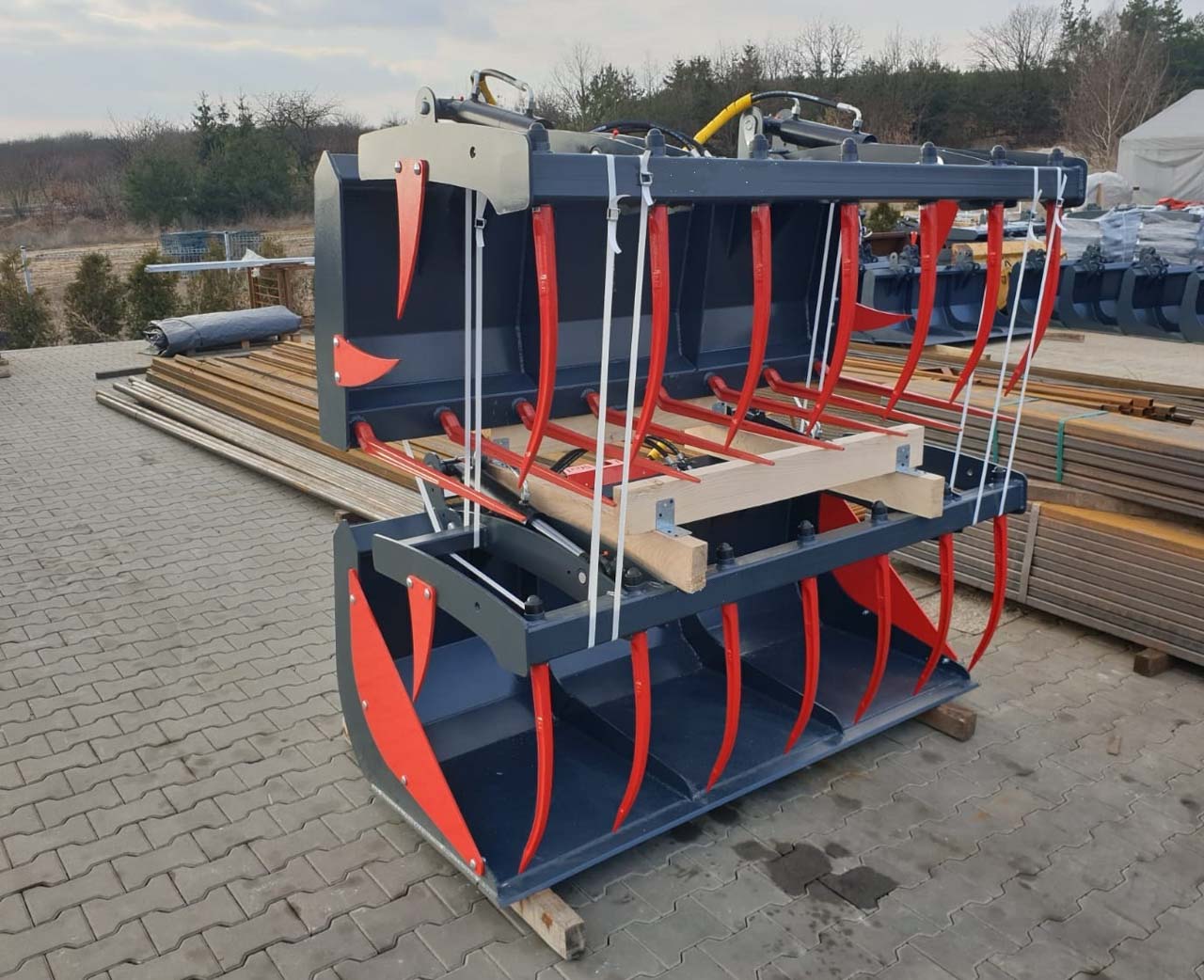

Forks with grapple RX
|
Code |
Working witdh [m] |
Capacity [m3] |
Weight [kg] |
|
2041RX |
1,2 |
0,50 |
174 |
|
2042RX |
1,4 |
0,60 |
190 |
|
2043RX |
1,5 |
0,75 |
236 |
|
2044RX |
1,6 |
0,8 |
249 |
|
2045RX |
1,8 |
0,90 |
266 |
|
2046RX |
2,0 |
1,00 |
300 |
|
2047RX |
2,2 |
1,10 |
315 |
|
2048RX |
2,4 |
1,20 |
375 |
Standard equipment
• 2 hydraulic cylinders
• Height 800mm-900 mm, depth 900mm
• Opening height 980mm- 1030 mm
• Forged lower tines 880 mm
• Forged upper tines 680 mm
• EURO mount
Optional equipment
• Other type of mount
Product number
2041RX-2048RX
